PRODUCT OVERVIEW

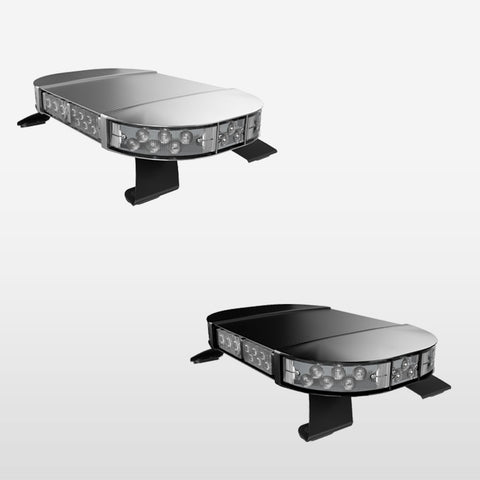

The TOMAR 21" 970 Series Mini LED Light Bar is a compact, high performance emergency lighting solution engineered for professionals who need powerful visibility in a smaller footprint. Designed for utility vehicles, command units, work trucks, and specialty applications, this light bar delivers the durability and performance expected from the 970 Series in a space saving design.
Built for demanding environments, the 21 inch 970 Series Mini provides reliable warning output while maintaining a low profile form factor ideal for smaller vehicles and tight mounting locations.
Rugged Construction in a Compact Design
The 21 inch 970 Series Mini LED light bar is constructed with a heavy duty extruded aluminum housing, cast aluminum end caps, and impact resistant Lexan light modules. This robust design ensures long term durability even in high vibration and harsh operating conditions.
Each LED module is hermetically sealed using TOMAR’s patented T-Seal™ linear vibration welding process. This advanced sealing method protects internal electronics from dust and moisture while eliminating traditional rubber seals that can degrade over time.
The result is a compact lighting system built for long lasting performance in demanding field environments.
Enhanced Visibility with Precision Optics
The 970 Series Mini utilizes TOMAR’s Clear Vision Optics™ to maximize visibility. Each module features a hybrid Total Internal Reflector (TIR) collimator that efficiently captures LED output and directs light down the roadway where it is most effective.
This precision optical control improves long distance visibility and helps increase reaction time for approaching traffic, enhancing safety for emergency responders and roadside operators.
Flexible Modular Design
The modular design of the 970 Series Mini allows for multiple configurations to match your specific application and budget. Available options include:
- Front and rear modules in 3 or 6 LED single color or 12 LED dual color
- Corner modules in 6 or 12 LED single color or 24 LED dual color
- High output take down and alley lighting options
This flexibility allows the light bar to be tailored for a wide range of vehicle types and operational needs.
Key Features
- Compact 21 inch design ideal for smaller vehicles and tight mounting spaces
- Heavy duty extruded aluminum housing with cast aluminum end caps
- Hermetically sealed LED modules using TOMAR patented T-Seal™ welding technology
- Clear Vision Optics™ for enhanced warning visibility

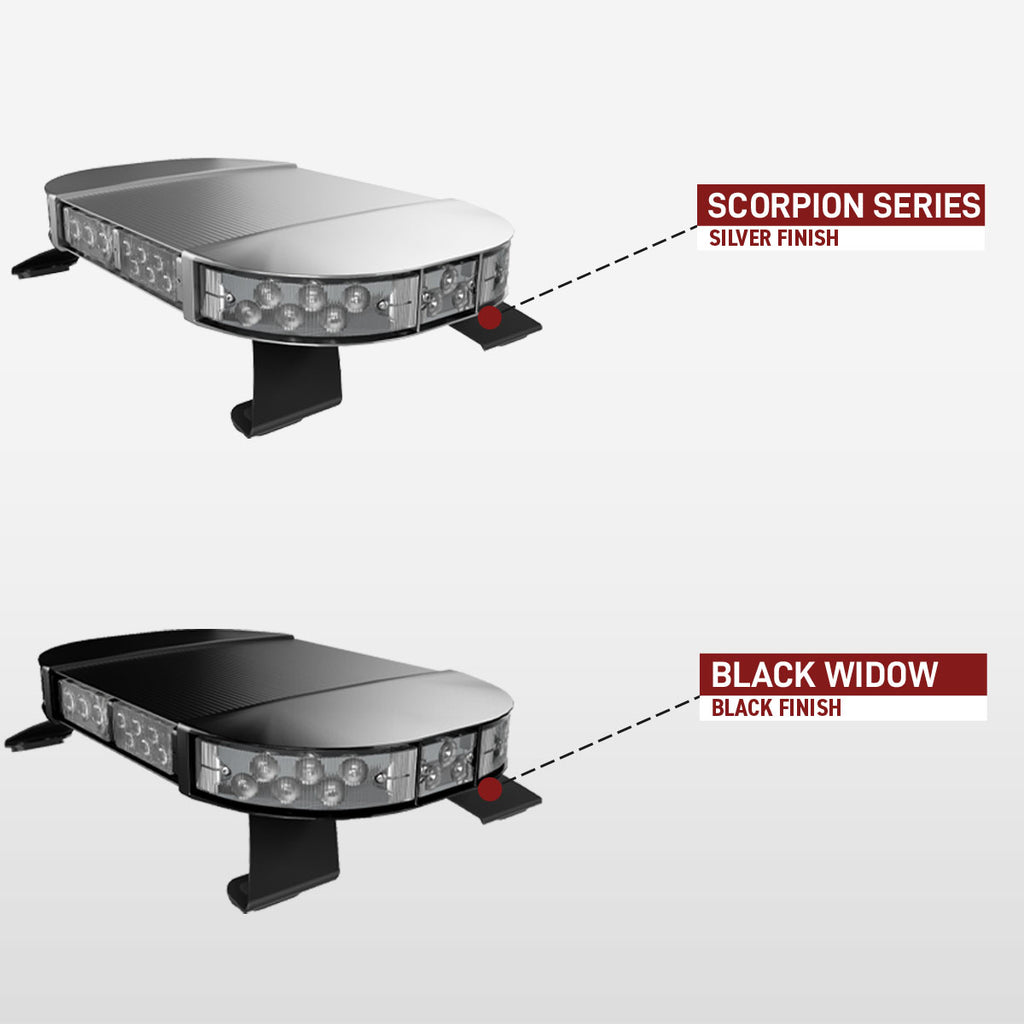

- Durable black powder coated housing designed for demanding environments
- Potted controller and waterproof wiring standard
- Front and rear modules available in 3 or 6 LED single color or 12 LED dual color configurations
- Corner modules available in 6 or 12 LED single color or 24 LED dual color configurations
- ICC lighting options available for all bar lengths
- NFPA configurations available for fire apparatus
- IP68 and IP69K+ intrusion protection rating
- SAE J595 Class 1 and SAE J845 Class 1 certified
- SAE J2498 and CCR Title 13 compliant when specified with optional California steady burn
- 5 year TOMAR manufacturer warranty
Common Applications
- Command vehicles and supervisor units
- Utility and service trucks
- Municipal fleet vehicles
- Off road and specialty vehicles
- Compact emergency response vehicles
Helpful Links
3D STEP FILES
What is the The TOMAR Difference?
TOMAR manufactures some of the longest-lasting, highest-performing automotive warning and illumination lighting in the industry. The technology that sets TOMAR apart includes our patented T-Seal™ process (U.S. Patent Nos. US-8092044 and US-8282242) and our performance-driven Clear Vision Optics™ system.
