PRODUCT OVERVIEW

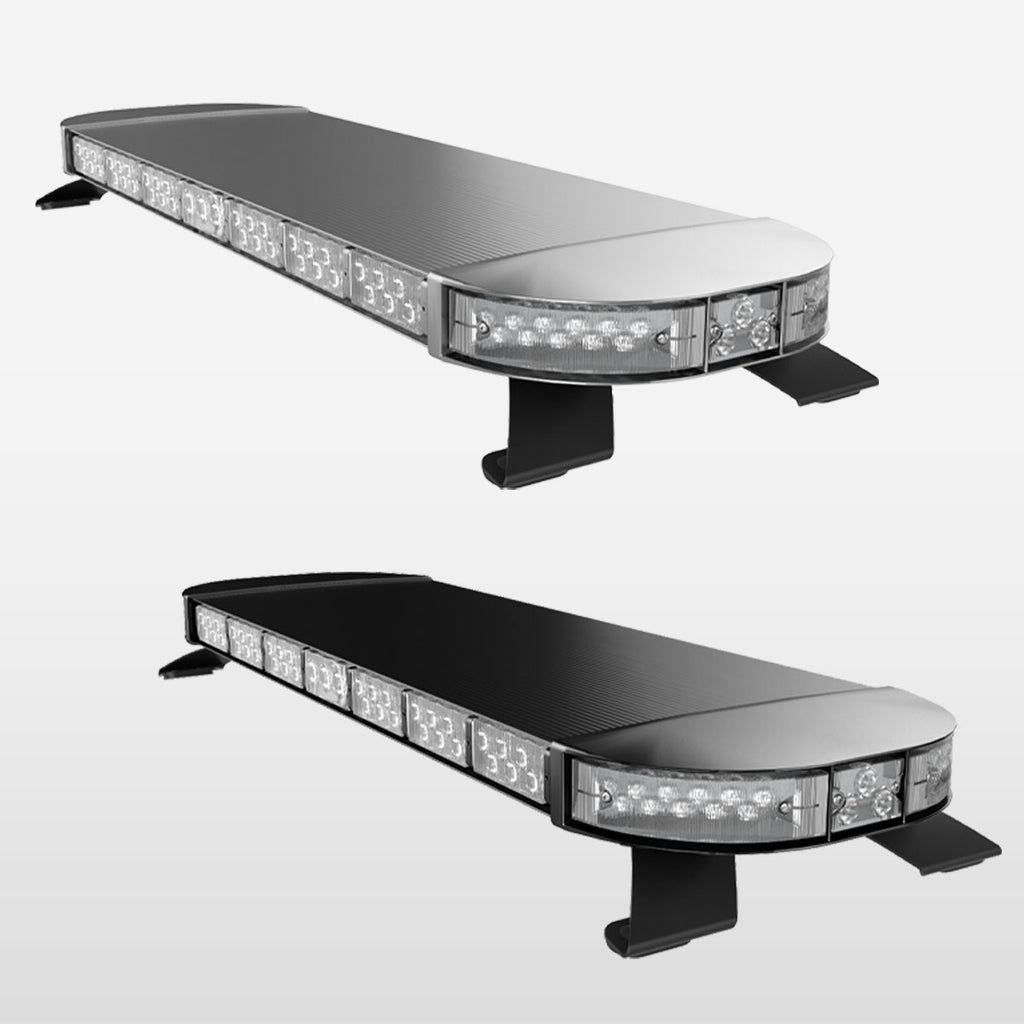

TOMAR's 44" 970 Series LED Light Bar is a high performance emergency lighting solution engineered for professionals who demand durability, visibility, and reliability in the most demanding environments.
Featuring a sleek black powder coated housing and modular LED architecture, the 44 inch 970 Series light bar combines modern design with rugged construction. Built for emergency vehicles, service fleets, and heavy duty equipment, this warning light bar is designed to perform when safety and visibility are critical.
Whether deployed on fire apparatus, ambulances, work trucks, or municipal fleets, the 970 Series provides dependable warning visibility to help improve roadway awareness and scene safety.
Rugged Construction for Multiple Applications
The 44 inch 970 Series LED light bar features an exceptionally strong design built to withstand demanding operating environments. Each light bar is constructed with a robust extruded aluminum housing, cast aluminum end caps, and impact resistant Lexan light modules.
To ensure long term reliability, every module is hermetically sealed using TOMAR’s patented T-Seal™ linear vibration welding process. This advanced sealing technology protects internal electronics from dust, moisture, and environmental exposure while eliminating traditional rubber seals that can degrade over time.
The result is a lighting system built to withstand vibration, harsh weather, and continuous fleet operation.
Putting the Light Where It Needs to Go
The 970 Series light bar delivers exceptional visibility using TOMAR’s Clear Vision Optics™. Each module utilizes a hybrid Total Internal Reflector (TIR) collimator that efficiently captures and directs LED output where it is most effective down the roadway.
This optical design improves long distance visibility and helps approaching drivers recognize emergency vehicles sooner. The result is improved reaction time and increased safety for first responders and roadside operators.
Common Applications
- Fire trucks and fire engine apparatus
- Ambulances and EMS vehicles
- Roadside towing and recovery vehicles
- Utility and service work trucks
- Snow plow fleets and municipal vehicles
- Farm and agricultural equipment
- Mining and off highway haul trucks
Key Features
- Heavy duty extruded aluminum housing with cast aluminum end caps
- Hermetically sealed LED modules using TOMAR patented T-Seal™ welding technology
- Clear Vision Optics™ for enhanced long distance visibility
- Durable black powder coated housing designed for demanding environments
- Potted controller and waterproof wiring standard
- Front and rear modules available in 3 or 6 LED single color or 12 LED dual color configurations
- Corner modules available in 6 or 12 LED single color or 24 LED dual color configurations
- Fully programmable flash patterns via wiring or optional 940L or 948L digital controller panel
- Integrated traffic director patterns standard on full size light bars with five or more rear modules
- ICC lighting options available for all bar lengths
- NFPA configurations available for fire apparatus
- IP68 and IP69K+ intrusion protection rating
- SAE J595 Class 1 and SAE J845 Class 1 certified
- SAE J2498 and CCR Title 13 compliant when specified with optional California steady burn
- 5 year TOMAR manufacturer warranty
Dual Color Lighting Overview
The dual color feature allows operators to switch between two independent LED color groups. Each color uses its own set of LEDs within the module, enabling instant color changes through a vehicle switch or controller input.
This functionality allows fleets to adapt warning lighting for different operational scenarios while maintaining full brightness and optical performance in each color mode.
