PRODUCT OVERVIEW

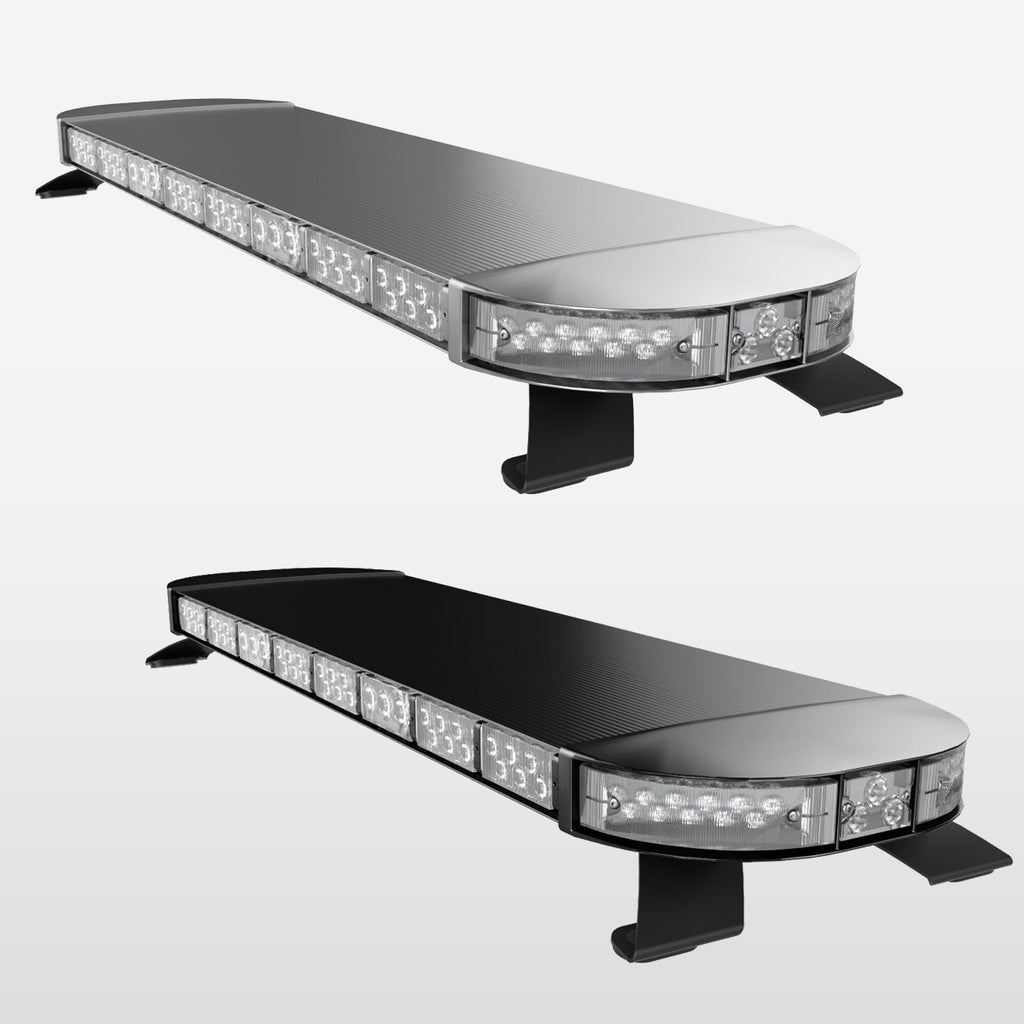

TOMAR's 49" 970 Series Modular LED Light Bar is a high performance emergency lighting solution engineered for professionals who demand durability, visibility, and reliability in the most demanding environments.
Designed for fire apparatus, ambulances, work trucks, and heavy duty fleet vehicles, the 49 inch 970 Series light bar combines rugged construction with advanced optical performance. Its modular LED design and durable black powder coated housing provide a modern look while delivering the strength required for real world applications.
Built to perform in critical situations, the 970 Series helps improve roadway visibility and operator safety in emergency response and work zone environments.
Rugged Construction for Demanding Environments
The 49 inch 970 Series LED light bar features an exceptionally durable design built for harsh operating conditions. Each unit is constructed with a heavy duty extruded aluminum housing, cast aluminum end caps, and impact resistant Lexan light modules.
Every LED module is hermetically sealed using TOMAR’s patented T-Seal™ linear vibration welding process. This advanced sealing method protects internal electronics from dust and moisture while eliminating traditional rubber seals that can degrade over time.
The result is a long lasting warning light bar capable of withstanding vibration, extreme weather, and continuous fleet use.
Putting the Light Where It Needs to Go
The 970 Series delivers exceptional visibility through TOMAR’s Clear Vision Optics™. Each module utilizes a hybrid Total Internal Reflector (TIR) collimator that efficiently captures LED output and directs light down the roadway where it is most effective.
This precision optical control improves long distance visibility and increases driver awareness, helping reduce response times and improve safety for emergency personnel and roadside operators.
Common Applications
- Fire trucks and fire engine apparatus
- Ambulances and EMS vehicles
- Roadside towing and recovery vehicles
- Utility and service work trucks
- Snow plow fleets and municipal vehicles
- Farm and agricultural equipment
- Mining and off highway haul trucks
Key Features
- Heavy duty extruded aluminum housing with cast aluminum end caps
- Hermetically sealed LED modules using TOMAR patented T-Seal™ welding technology
- Clear Vision Optics™ for enhanced warning visibility

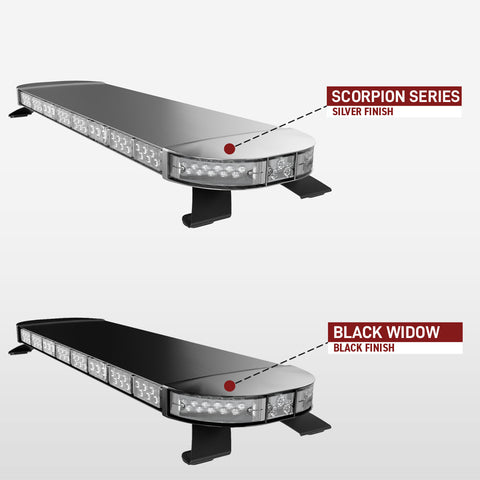

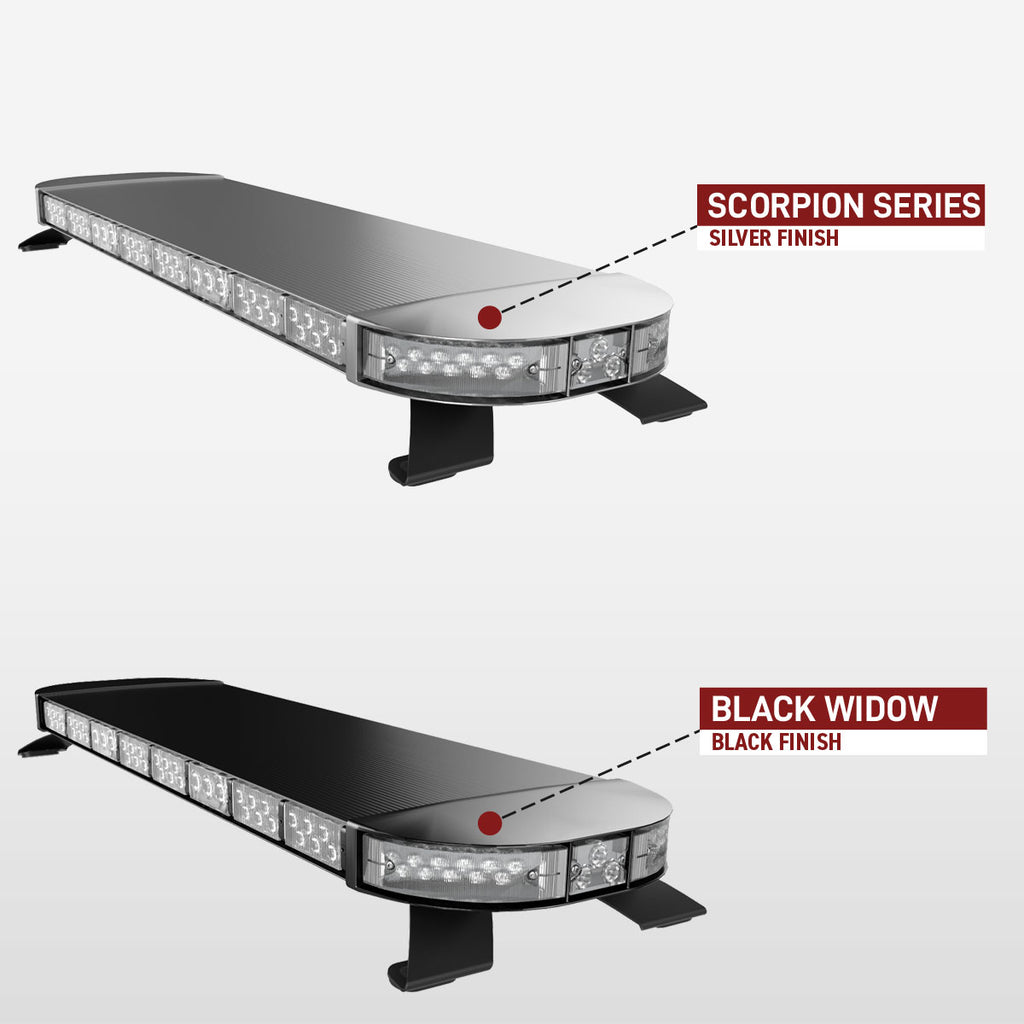

- Durable black powder coated housing designed for demanding field environments
- Potted controller and waterproof wiring standard
- Front and rear modules available in 3 or 6 LED single color or 12 LED dual color configurations
- Corner modules available in 6 or 12 LED single color or 24 LED dual color configurations
- Fully programmable flash patterns via wiring or optional 940L or 948L digital controller panel
- Integrated traffic director functionality standard on full size light bars with five or more rear modules
- ICC lighting options available for all bar lengths
- NFPA configurations available for fire apparatus
- IP68 and IP69K+ intrusion protection rating
- SAE J595 Class 1 and SAE J845 Class 1 certified
- SAE J2498 and CCR Title 13 compliant when specified with optional California steady burn
- 5 year TOMAR manufacturer warranty
Dual Color Lighting Overview
The dual color feature uses independent LED groups for each color, allowing operators to switch instantly between colors using a vehicle switch or controller input.
This flexibility allows fleets to adapt warning lighting based on operational needs while maintaining full brightness and optical performance in each color mode.
