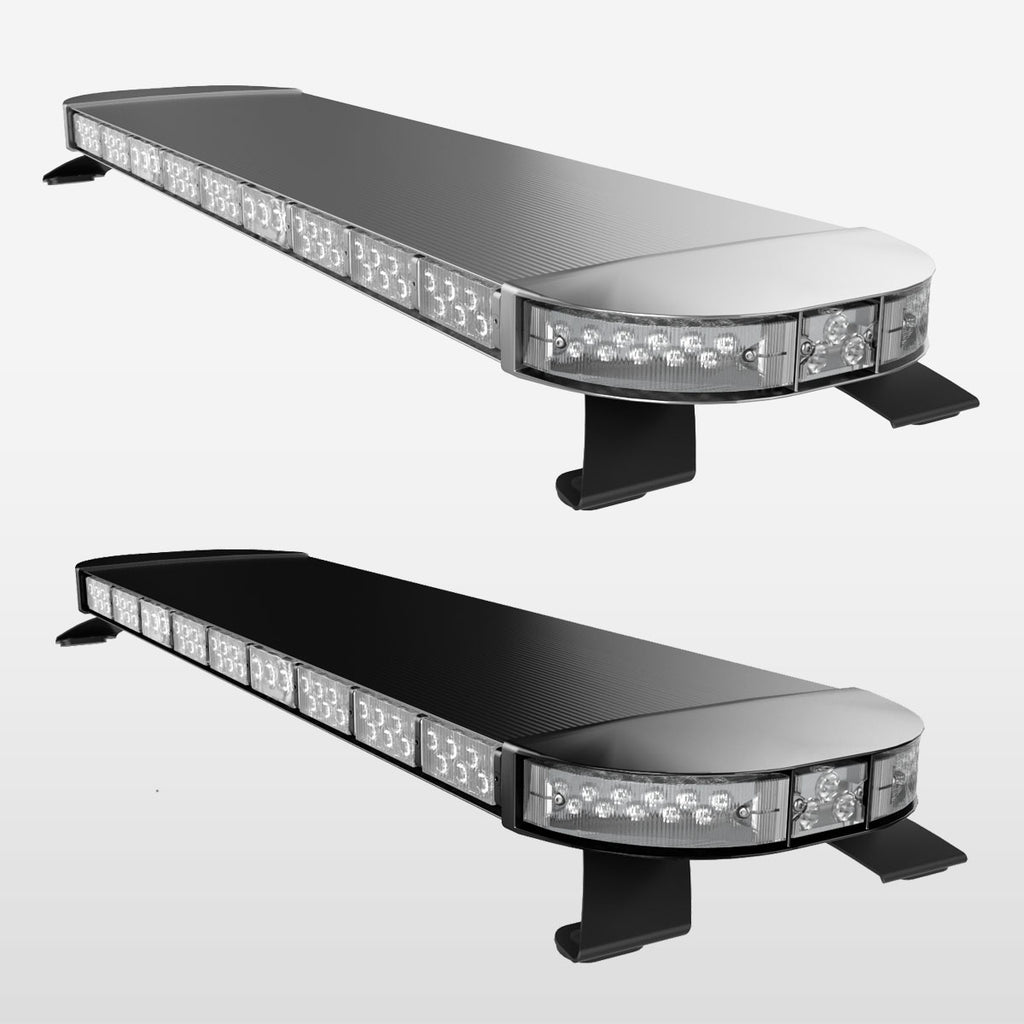

53" 970 Series LED Light Bar

PRODUCT OVERVIEW

TOMAR's 53" 970 Series LED Light Bar is a high performance emergency lighting solution engineered for professionals who demand durability, visibility, and reliability in demanding environments. Designed for fire apparatus, ambulances, work trucks, and municipal fleets, the 970 Series delivers powerful warning output with rugged construction and advanced optical performance.

Featuring a durable black powder coated housing and modular LED design, the 53 inch 970 Series light bar combines modern styling with field proven durability. Built to perform when it matters most, this warning light bar helps improve visibility and safety in emergency response and work zone environments.

Rugged Construction for Demanding Environments

The 53 inch 970 Series emergency LED light bar is built with a heavy duty extruded aluminum housing, cast aluminum end caps, and impact resistant Lexan light modules. This robust construction ensures long term durability in high vibration and harsh operating conditions.

Each LED module is hermetically sealed using TOMAR’s patented T-Seal™ linear vibration welding process. This advanced sealing method protects internal electronics from dust and moisture while eliminating traditional rubber seals that can degrade over time.

The result is a long lasting lighting system engineered for reliability across emergency and industrial applications.

Putting the Light Where It Needs to Go

The 970 Series delivers exceptional visibility using TOMAR’s Clear Vision Optics™. Each module features a hybrid Total Internal Reflector (TIR) collimator that efficiently captures LED output and directs light where it is most effective down the roadway.

This precision optical design improves long distance visibility and increases driver awareness, helping reduce response times and improve safety for emergency responders and roadside operators.

Common Applications

• Fire trucks and fire engine apparatus
• Ambulances and EMS vehicles
• Roadside towing and recovery vehicles
• Utility and service work trucks
• Snow plow fleets and municipal vehicles
• Farm and agricultural equipment
• Mining and off highway haul trucks

Key Features

• Heavy duty extruded aluminum housing with cast aluminum end caps
• Hermetically sealed LED modules using TOMAR patented T-Seal™ welding technology
• Clear Vision Optics™ for enhanced warning visibility

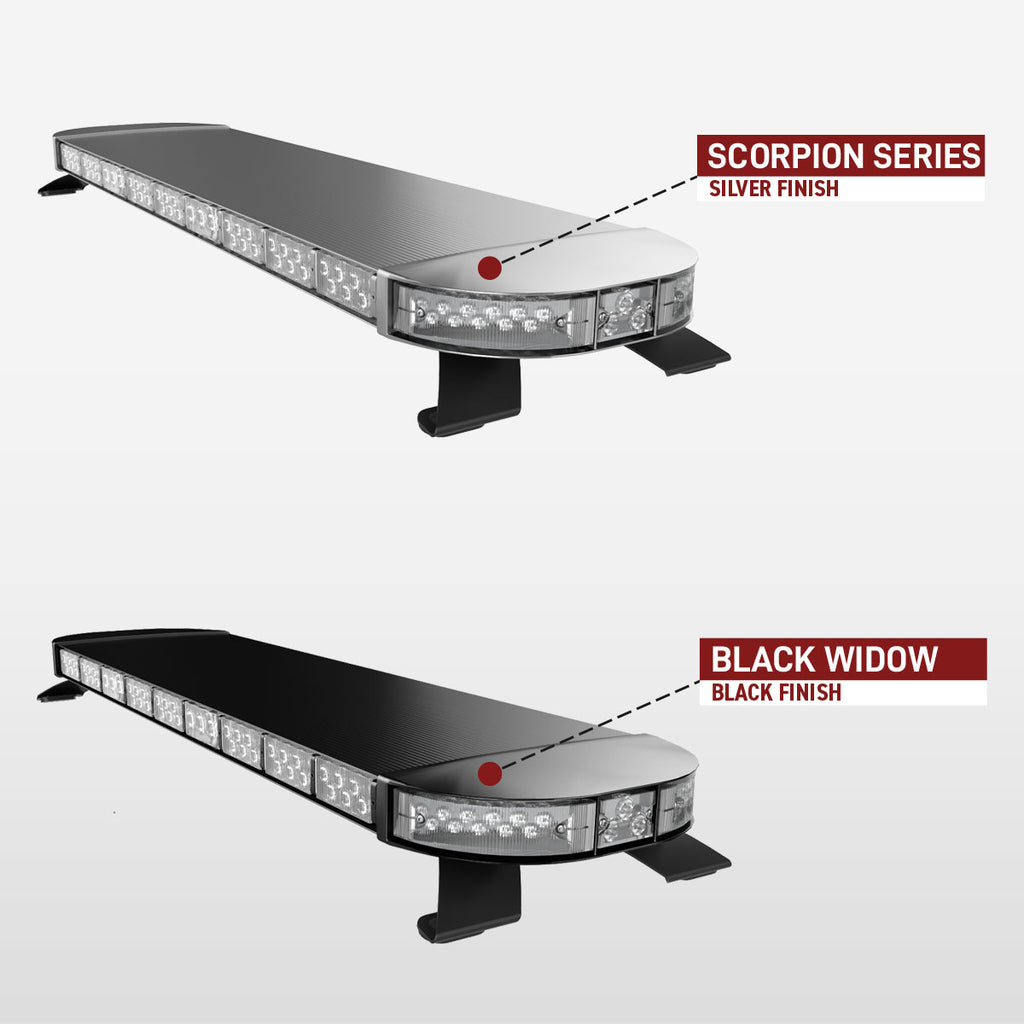

• Durable black powder coated housing designed for demanding field environments
• Potted controller and waterproof wiring standard
• Front and rear modules available in 3 or 6 LED single color or 12 LED dual color configurations
• Corner modules available in 6 or 12 LED single color or 24 LED dual color configurations
• Fully programmable flash patterns via wiring or optional 940L or 948L digital controller panel
• Integrated traffic director functionality standard on full size light bars with five or more rear modules
• ICC lighting options available for all bar lengths
• NFPA configurations available for fire apparatus
• IP68 and IP69K+ intrusion protection rating
• SAE J595 Class 1 and SAE J845 Class 1 certified
• SAE J2498 and CCR Title 13 compliant when specified with optional California steady burn
• 5 year TOMAR manufacturer warranty

Dual Color Lighting Overview

The dual color feature uses independent LED groups for each color, allowing operators to switch instantly between colors using a vehicle switch or controller input.

This flexibility allows fleets to adapt warning lighting based on operational needs while maintaining full brightness and optical performance in each color mode.
