PRODUCT OVERVIEW

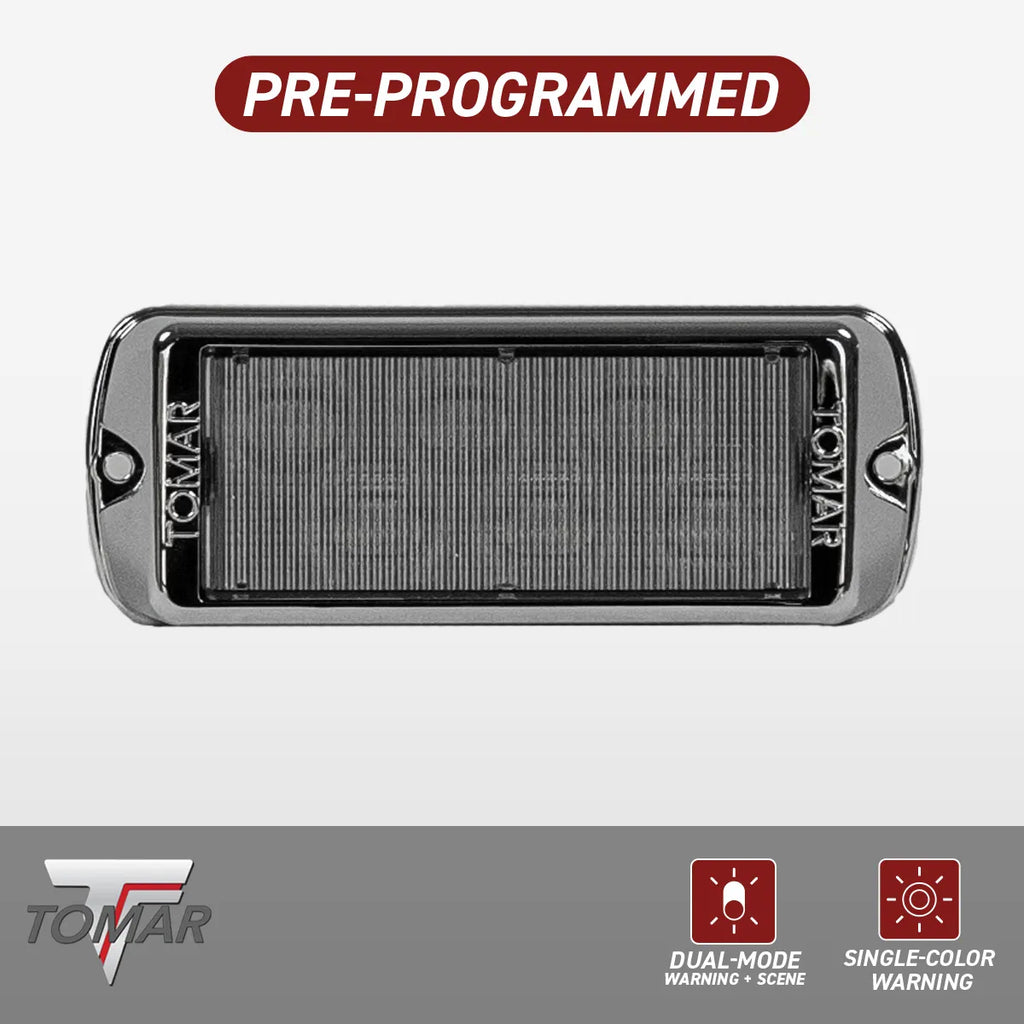

The iLED™ Series Single Color Pre-Programmed "Pairs" LED Light comes with a remarkable design that places it a cut above the rest. It has a single color warning mode pre-programmed to comply with standard warning requirements.
The plug-n-play feature of the iLED™ Series Pre-Programmed LED Lights is all about simplicity and efficiency. Out of the box, the lights are ready to be installed and used immediately—there's no need for complicated setup procedures or programming. Just connect the lights to the controller and they're ready to go.
Our patented sealing technology ensures you have a waterproof lamp that directs light exactly where it's required, bypassing the need for additional brackets. (US patent no. 8282242 & 8092044) What distinguishes this model is its 'Pairs' feature, allowing two lights to operate synchronously for enhanced visibility and safety. The iLED™ Series Single Color Pre-Programmed "Pairs" LED Light is not just a tool—it's your reliable partner in safety.
Pairs Explained
The lamps are grouped in “pairs” by the end two digits. For example, a R37D-W-RW-01 and a R37D-W-RW-02 are opposite phases of each other. This means, when powered at the same time (such as the vehicle’s master emergency mode being activated), the lamps will flash at opposite timing. For dual-color lamps which have no “off” time, they flash opposite colors of each other. This makes installation of TOMAR’s warning lights simple, without the need programming.
See product options to select phase one or phase two
Vertical Or Horizontal
- Vertical: The Vertical iLED light ensures high-visibility from any forward-facing perspective. This light cuts through the darkest night or heavy fog, providing optimum visibility. This upright position helps maximize illumination coverage in front of the vehicle, making it an ideal choice for urban environments.
- Vertical 13° Angled: The Vertical 13° Angled model takes the advantages of the Vertical light and adds a 13-degree outward tilt. This angling casts the light slightly outward (away from the vehicle), making it more effective at illuminating areas away from the front of the vehicle. The 13-degree angle is optimal for highlighting potential hazards on the road surface, such as potholes or debris, that a straight-ahead light may miss.
- Horizontal 13° Angled: Much like its Vertical counterpart, the Horizontal 13° Angled iLED light offers a unique blend of direct and diffused lighting. By angling the light slightly, it's possible to achieve a broader spread of illumination to the sides of the vehicle. This model is excellent for rural areas or open spaces, where wide visibility is key for spotting potential hazards at the roadside or across a wide area.
- Horizontal: The Horizontal iLED light is perfect for providing a broad band of light across the horizon. This light setup allows for maximum visibility from side to side, helping to ensure that other drivers can see your vehicle from various angles. This layout is especially beneficial in areas with wide roads or expansive terrain, as well as situations where maximum lateral visibility is important.
KEY FEATURES
- Color Customization: Choose from either sleek black or polished chrome bezels to suit your vehicle's aesthetic.
- Extended Warranty: Enjoy peace of mind with a 5-year no-hassle warranty.
- Patented Waterproof Design: The iLED™ series' unique patented sealing technology ensures a completely waterproof lamp, directing light precisely where you need it (US patent no. 8282242 & 8092044).
- Industry Standards Compliant: Rigorously tested and found compliant with SAE and CA 13 regulations for your assurance of quality and safety.
- Programmable Patterns and Flash Rates: Personalize your lighting environment with customizable patterns and flash rates, giving you complete control over your safety illumination.
- Sync with other TOMAR products: Seamlessly integrate and synchronize the iLED™ Single Color LED Light with other TOMAR products for a comprehensive safety solution.
- Programmable Single Color Override: The single-color override can be programmed to meet the demands of any lighting situation, further enhancing the versatility of the iLED™ Single Color LED Light.
- Utilizes TOMAR’s superior optical technology TOMAR’s optics are designed and engineered to maximize light output efficiently
- Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
Potential Uses
- Fire Truck/Fire Engine apparatuses
- Ambulances
- Farm equipment (tractors/ work vehicles)
- Mining equipment (off-highway/haul trucks)
- Roadside towing equipment
- Snow Plows
- Work Trucks (Construction/Service Body Vehicles)
WIRING DETAILS
- BLACK: Connect to GROUND
- YELLOW: Sync/Enter Programming Mode/Pattern Select
- RED: Mode 1 flash pattern
- BLUE: Mode 2 flash pattern
- RED & BLUE: Mode 3 flash pattern
- WHITE: Steady Burn
AMP DRAW
- Mode: 12.8 Vdc
- Steady Blue: 0.75A
- Steady Red: 0.57A
- Steady White: 0.78A
- Mode 1 default (neobe 150 phase 0, Red LED): 0.21A
- Mode 2 default (neobe 75 phase 0, Blue LED): 0.28A
- Mode 3 default (single 120 phase 0, White LED): 0.40A
NFPA 1901 Cumulative Lamp Totals Candela Seconds per Minute:
Color | Single | Double | Neobe |
---|---|---|---|
Amber | 225,870 | 112,935 | 158,109 |
Blue | 200,520 | 100,260 | 140,364 |
Red | 232,703 | 116,351 | 162,892 |
White | 260,858 | 130,429 | 182,600 |
Brochures
3D STEP FILES
What is the The TOMAR Difference?
TOMAR manufacturers some of the longest lasting, highest performing automotive warning and illumination lighting in the industry. Some of the technology which sets TOMAR apart from the rest can be found in our patented T-Seal™ and performance-based Clear Vision Optics™.
