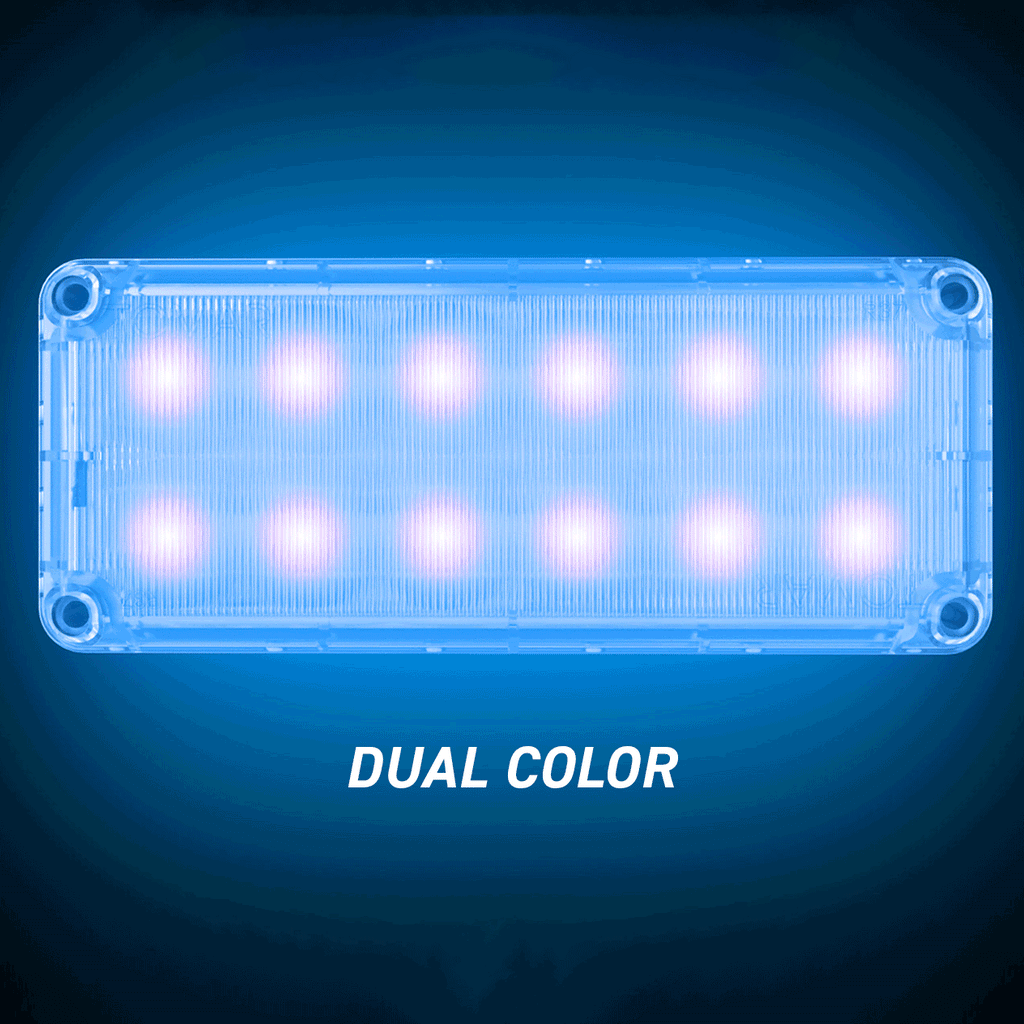

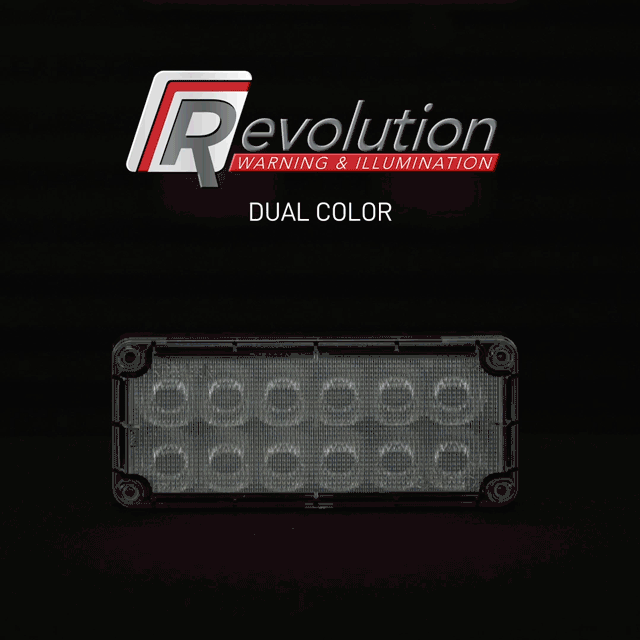

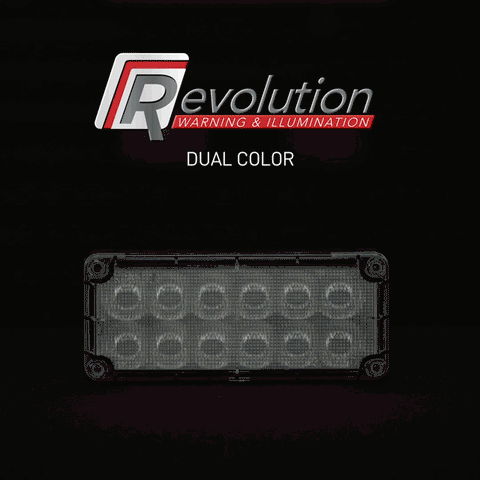

R37 Revolution Series Dual Warning (Full Lamp Dual Color) LED Light

  • SKU:
  • PRICE:

PRODUCT OVERVIEW

TOMAR's R37 Revolution Series Dual Warning (Full Lamp Dual Color) LED Light is a SAE compliant warning light. With our Dual Warning LED Light you pick the warning colors to meet you specific needs.

Focused lumens with Clear Vision Optics™
By focusing the lumens away from the emergency vehicle and further down the road, the result is increased visibility to motorists and reduced night blindness and eyestrain for first responders working directly around the vehicle. This is accomplished by focusing the lumens in a horizontal plane, and eliminating stray vertical warning light. Emergency warning lights should be seen from a distance, and not focused up close.

Potential Uses

  • Fire Truck/Fire Engine apparatuses
  • Ambulances
  • Farm equipment (tractors/ work vehicles)
  • Mining equipment (off-highway/haul trucks)
  • Roadside towing equipment


KEY FEATURES

  • Dual Mode, Multi-Purpose Dual Warning in one LED lamp for extreme versatility and safety
  • Utilizes TOMAR’s super optical technology TOMAR’s optics are designed and engineered to maximize light output efficiently
  • Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
  • The ONLY light series with a patented, waterproof seal
  • Isolated mounting holes to eliminate stress fractures during installation and maintenance
  • Built-in venting system that allows unwanted elements to quickly escape
  • The latest, most reliable, high intense, and highly efficient LEDs to keep your response safer and your scene illuminated brighter and longer
  • Specially designed optics to direct light where you need it
  • Wide-angle lens to maximize visibility
  • Each lamp can be programmed to be an intelligent lamp or connected to an existing control system
  • Surface mounted to eliminate the need to make additional cutouts in your vehicle
  • Chrome and Black Bezels Available for a finished, professional appearance (see product options)
  • SAE and EC65 Compliant Models
  • Meets CA Title 13
  • No Hassle 5 Year Warranty


SPECS PER LIGHT (R37)

  • Dimensions: 7.23w x 3.04h x 1.171d (18.59cm x 7.72cm x 2.97cm)
  • Bezel Outside Dimensions (R37-BZ/R37-BZ-B): 8.13” X 3.94”
  • Amp Draw: @12.8VDC
  • Warning Lamps
    • Single Color (50% Duty Cycle): 0.79 Amps
    • Dual Color (Both Colors Flashing – 100% Duty Cycle): 1.58 Amps
    • Split Color Lamps (50% Duty Cycle): 0.79 Amps

Wiring Details:

Internal Flasher (Smart Mode):

  • Red: Connect to Battery +12Vdc thru +24Vdc to activate
  • Black: Connect to Battery GROUND
  • Yellow: Sync Line
  • Blue: Alternate Flash Pattern

Direct Control:

  • Red: Connect to Battery +12Vdc thru +24Vdc to activate (Active Low Inputs Only)
  • Black: Connect to Battery GROUND (Active High Inputs Only)
  • Yellow: Side A or Color 1
  • Blue: Side B or Color 2

NFPA 1901 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):

Model Single Double Neobe

R37L-W-A (Single Color)

 969,975 484,988 678,983

R37L-W-B (Single Color)

 701,325 350,663 490,928

R37L-W-R (Single Color)

 897,675 448,838 628,373

R37L-W-W (Single Color)

 2,286,150 1,143,075 1,600,305

R37LD-W-A (Dual-Color)

 847,125 423,563 592,988

R37LD-W-B (Dual-Color)

 540,675 270,338 378,473

R37LD-W-R (Dual-Color)

 740,250 370,125 518,175

R37LD-W-W (Dual-Color)

 1,719,999 860,000 1,203,999

HELPFUL LINKS

3D STEP FILES


What is the The TOMAR Difference?

TOMAR manufacturers some of the longest lasting, highest performing automotive warning and illumination lighting in the industry. Some of the technology which sets TOMAR apart from the rest can be found in our patented T-Seal™ and performance-based Clear Vision Optics™.
