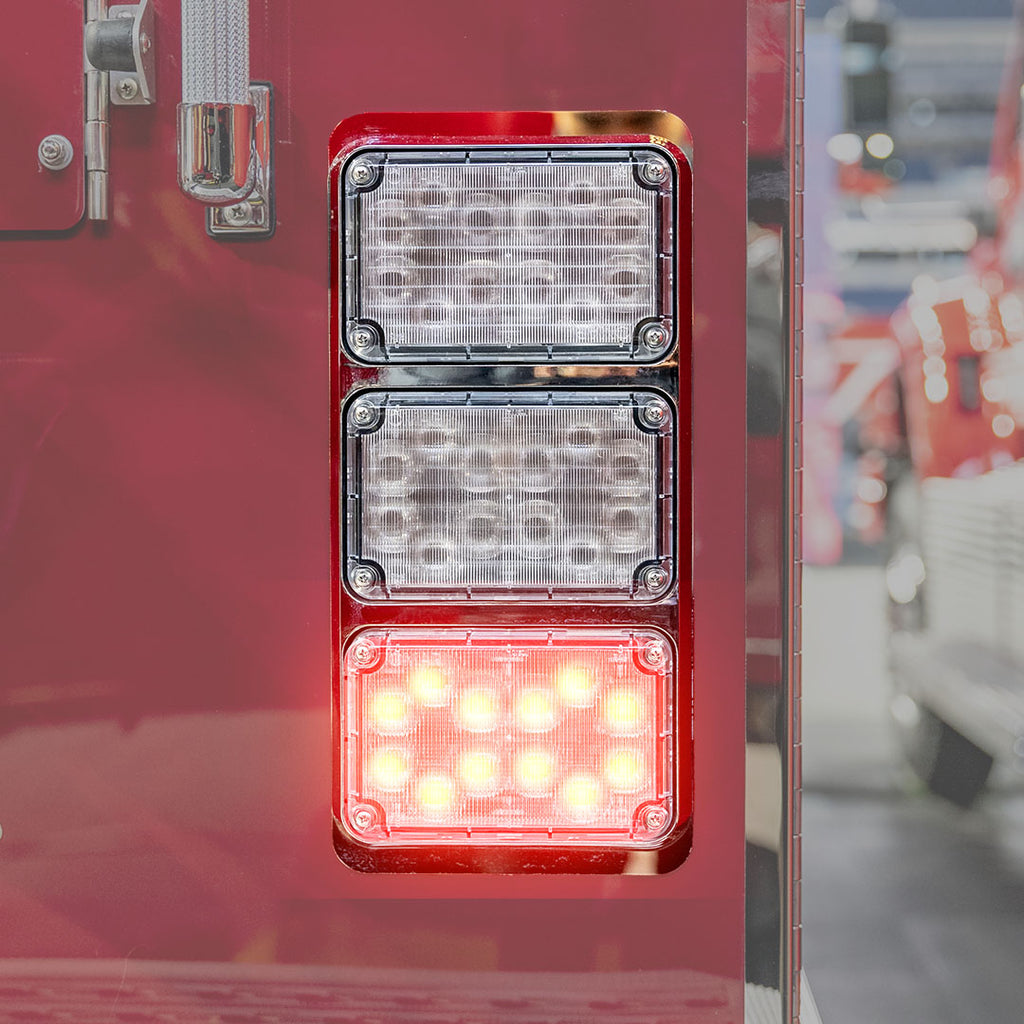

R46 Revolution Series DOT Bundle



PRODUCT OVERVIEW

TOMAR's R46 Revolution Series LED DOT Bundle is designed to provide everything you need to add rugged, long-lasting performance to any vehicle build needing DOT-compliant stop, tail, turn, and reverse lamps. These DOT lamps maintain the same durable functionality found in our Revolution Series and give you the option of incorporating a warning light into the third/reverse lamp using our Dual-Mode™ Technology - eliminating the need for an expensive and space-reducing fourth lamp.

All TOMAR DOT lamps meet total light output and optical light dispersion as required by FMVSS standards.

KEY FEATURES

  • DOT Compliant Stop, Tail, and Turn Lamps
  • Assembled in-house at TOMAR Headquarters in Gilbert, Arizona, USA
  • Utilizes TOMAR’s superior Clear Vision Optics™ to maximize light output efficiently
  • Hermetically-sealed patented design
  • Built with UV-resistant Lexan
  • Chrome and Black Bezels available for a finished, professional appearance (see product options)

WHAT'S INCLUDED

  • (2) x DOT-compliant stop/tail lamps with selectable steady-on or stutter-on stop light activation.
  • (2) x DOT-compliant amber turn signals.
  • (2) x 13-Degree down-angled white reverse flood lamps OR optional Dual-Mode Warning Lamp Function (Dual-Mode Lamps provide lower Zone C warning and white reverse lamps in one lamp and shine horizontally/not angled down).
  • Choice of (2) 3-stack bezels or (6) individual bezels with all required body-seal gaskets, in either Black or Chrome.


SPECS PER LIGHT (R46)

  • Lamp Dimensions:  6.5"w x 4.16"h x 1.09"d
  • Bezel Dimensions:
    • Single Bezel (R46-BZ/R46-BZ-B):  7.34” X 4.98”
    • Tri-Bezel (R46-BZ3/R46-BZ3-B): 14.48” X 7.43”
    • Amp Draw: @12.8VDC
      • Steady-on Lamps: 1.6 Amps
      • Warning Lamps: 0.79 Amps
  • DOT LAMPS
    • R46L-STT-Stop Mode = 0.39 Amps / Tail Mode = 0.02 Amps
    • R46L-TURN-Flashing = 1.06 Amps

NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):

Model Single Double Neobe

R46L-W-A

1,287,525 643,763 901,268

R46L-W-B

835,725 417,863 585,008

R46L-W-R

1,240,875 620,438 868,613

R46L-W-W

2,604,075 1,302,038 1,822,853

R46LD-W-A

986,325 493,163 690,428

R46LD-W-B

590,175 295,088 413,123

R46LD-W-R

846,825 423,413 592,778

R46LD-W-W

2,018,850 1,009,425 1,413,195
