PRODUCT OVERVIEW

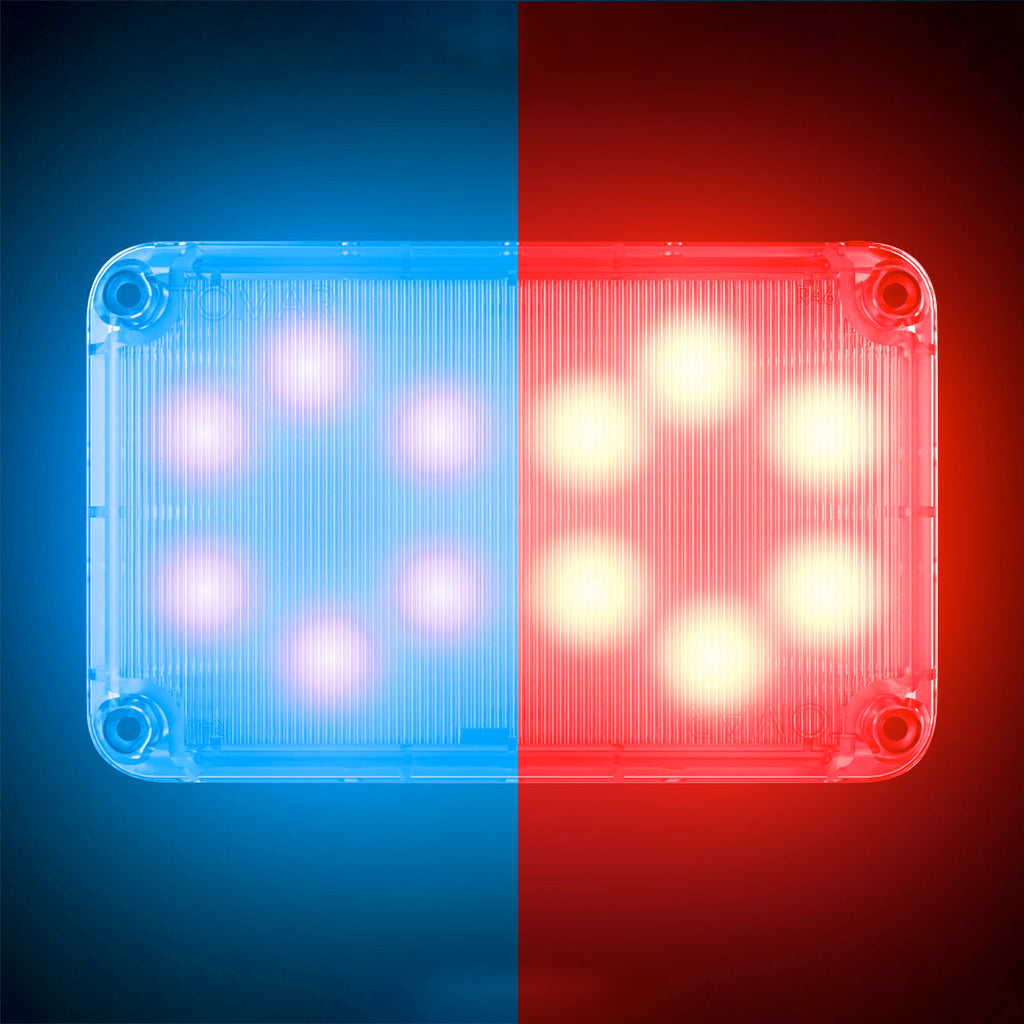

R46 Revolution Series Warning Split LED Light is an emergency warning LED light that can be used for emergency vehicles.
By focusing the lumens away from the emergency vehicle and further down the road, the result is increased visibility to motorists and reduced night blindness and eyestrain for first responders working directly around the vehicle.
This is accomplished by focusing the lumens in a horizontal plane, and eliminating stray vertical warning light. Emergency warning lights should be seen from a distance, and not focused up close. TOMAR Revolution Warning Series lights can be equipped with either SAE or European ECE65 optics.
KEY FEATURES
- High Intensity Warning and Work LED lights
- Dual Warning LED Lights (Color 1 and 2 are warning)
- Wide angle optical lens for maximum light output
- Each lamp can be programmed to be an intelligent lamp, or connected to an existing control system
- Surface mounted to eliminate the need to make cutouts in your vehicle
- Chrome and Black Bezels available for a finished direct from the factory look and feel (see product options)
- SAE and EC65 Compliant Models
- Meets CA Title 13
- No Hassle 5 Year Warranty
- Utilizes TOMAR’s superior optical technology TOMAR’s optics are designed and engineered to maximize light output efficiently
- Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
Potential Uses
- Fire Truck/Fire Engine apparatuses
- Ambulances
- Farm equipment (tractors/ work vehicles)
- Mining equipment (off-highway/haul trucks)
- Roadside towing equipment
- Snow Plows
- Work Trucks (Construction/Service Body Vehicles)
SPECS PER LIGHT (R46)
- Warning Lamps
- Maximum Input Current (amp draw) R46 Warning Lights: 1.53A at 12.8VDC
- Single Color (50% Duty Cycle): 0.79 Amps
- Dual Color (Both Colors Flashing – 100% Duty Cycle): 1.58 Amps
- Split Color Lamps (50% Duty Cycle): 0.79 Amps
Wiring Details:
- Red: Connect to Battery +12Vdc thru +24Vdc to activate
- Black: Connect to Battery GROUND
- Yellow: Sync Line
- Blue: Alternate Flash Pattern
- Red: Connect to Battery +12Vdc thru +24Vdc to activate (Active Low Inputs Only)
- Black: Connect to Battery GROUND (Active High Inputs Only)
- Yellow: Side A or Color 1
- Blue: Side B or Color 2
NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):
| Model | Single | Double | Neobe |
|---|---|---|---|
|
R46LL-W-A |
1,287,525 | 643,763 | 901,268 |
|
R46LL-W-B |
835,725 | 417,863 | 585,008 |
|
R46LL-W-R |
1,240,875 | 620,438 | 868,613 |
|
R46LL-W-W |
2,604,075 | 1,302,038 | 1,822,853 |
|
R46LD-W-A |
986,325 | 493,163 | 690,428 |
|
R46LD-W-B |
590,175 | 295,088 | 413,123 |
|
R46LD-W-R |
846,825 | 423,413 | 592,778 |
|
R46LD-W-W |
2,018,850 | 1,009,425 | 1,413,195 |
