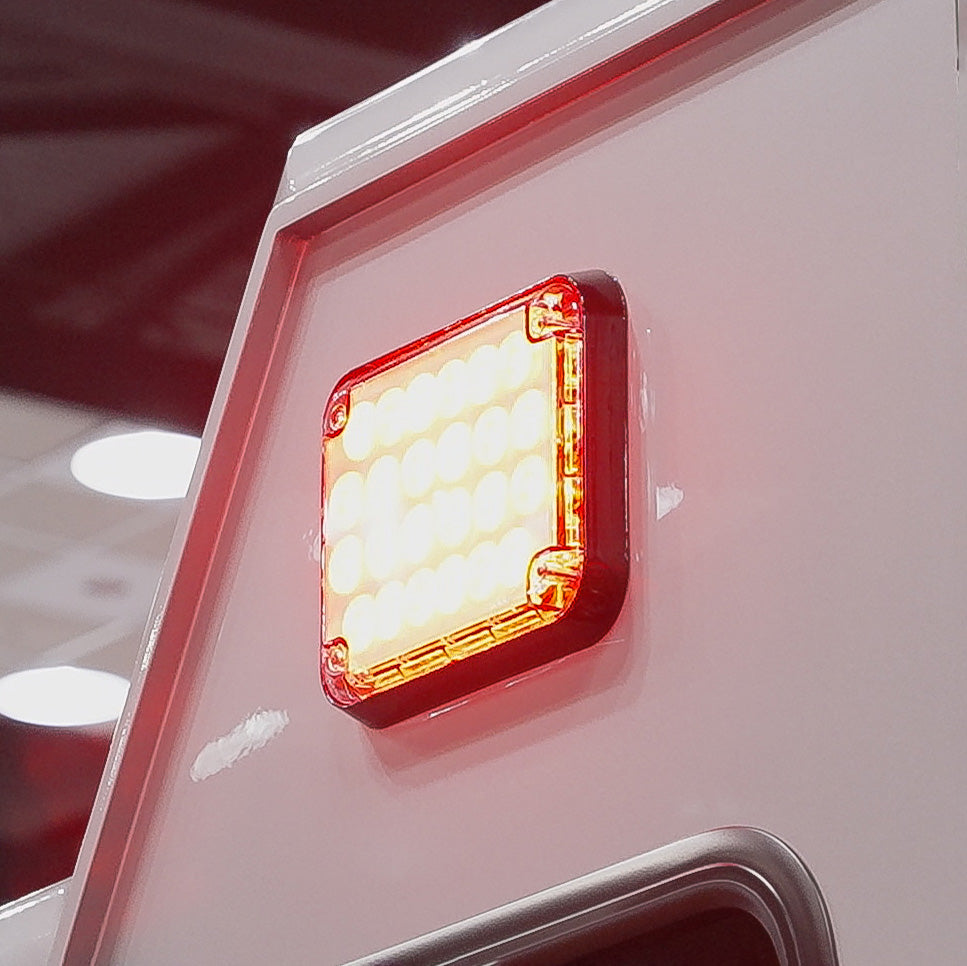

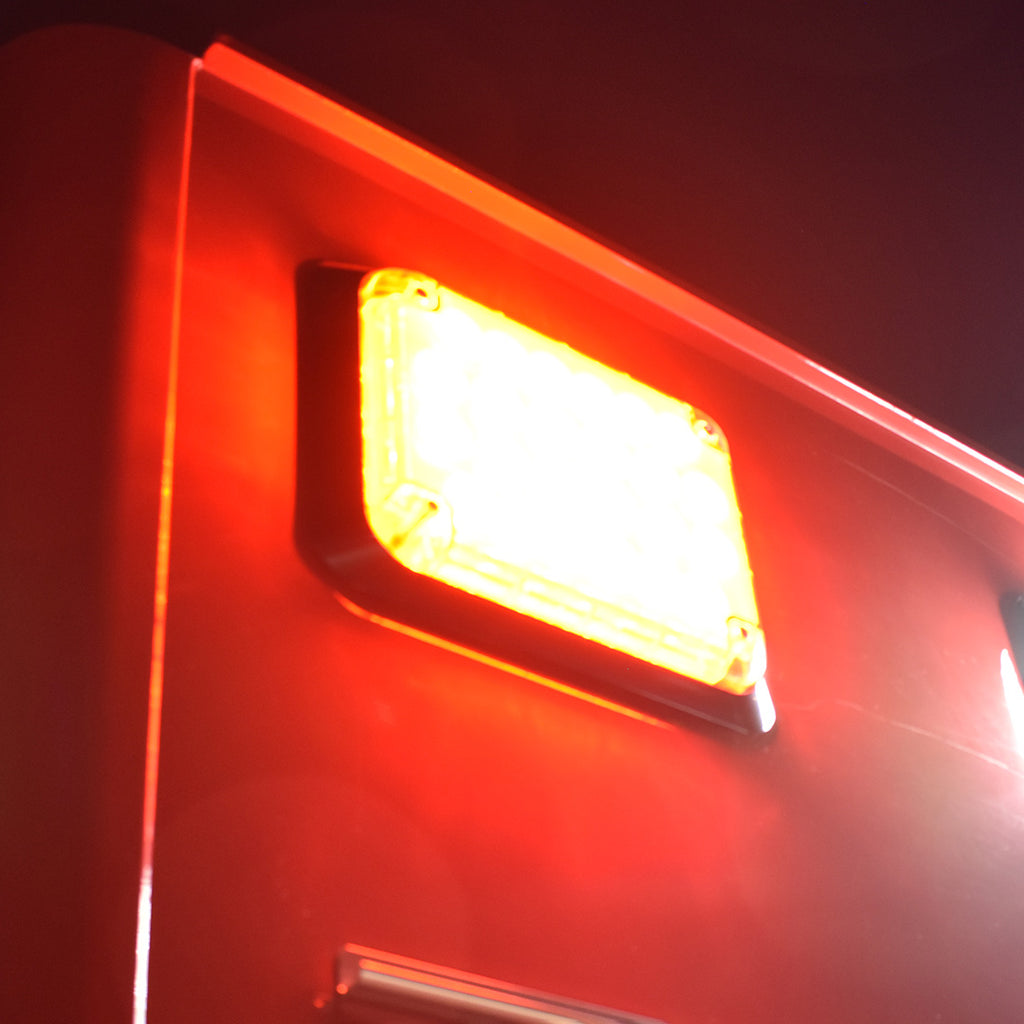

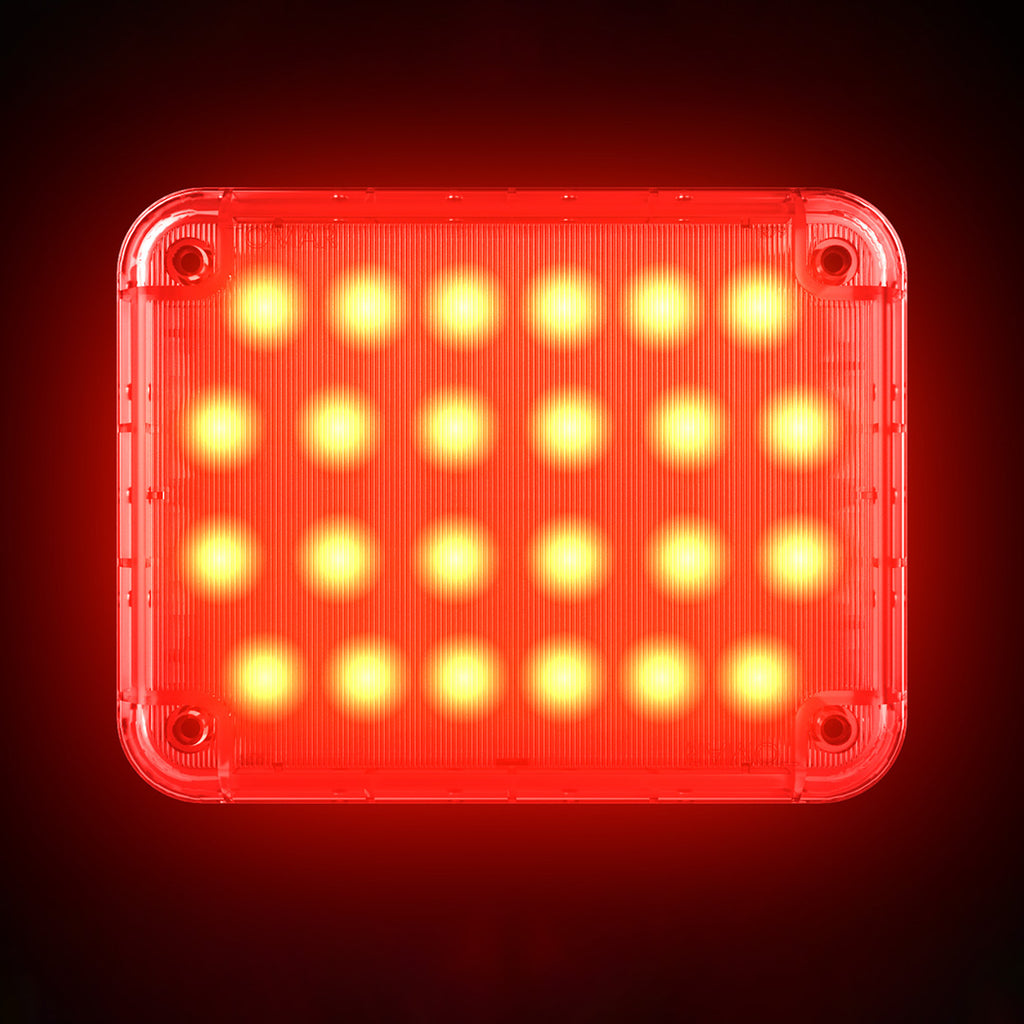

R79 Revolution Series Single Color Warning LED Light

PRODUCT OVERVIEW

R79 Revolution Series Single Color Warning LED Light uses TOMAR’s clear vision optics™ offer a unique advantage in an NFPA or EMS/Triple K warning package.

By focusing the lumens away from the emergency vehicle and further down the road, the result is increased visibility to motorists and reduced night blindness and eyestrain for first responders working directly around the vehicle. This is accomplished by focusing the lumens in a horizontal plane, and eliminating stray vertical warning light. Emergency warning lights should be seen from a distance, and not focused up close.

Product Options

What is FPM?
FPM, or Flashes Per Minute, describes the Flash Rate, or how many full flash-cycles the lamp will display per 60 seconds of time. Agencies such as the National Fire Protection Agency and the California Code of Regulations (CA-13 or CCR-13) use FPM to regulate what they believe to be optimized warning lamp conditions.
Note: Both of the aforementioned agencies call for flashes per minute to be between 60 and 120 FPM.

What do Phases mean?
The Phase of a warning lamp determines the timing of the flash in relation to when the lamp is powered. A Phase 0 lamp will start to flash immediately. A Phase 1 lamp will have a delayed flash. When next to each other and powered on at the same time, the Phase 0 and Phase 1 lamps will “wig-wag”, flashing opposite of each other. The wig-wag of fully-flashing lamps is considered to be an effective way for the vehicle to provide warning notification.

What is Neobe?
Neobe Flash is a registered trademark technology of TOMAR Electronics developed in 1994, which combines seven (7) rapid flashes of light in each single light burst. Neobe provides a proven level of high conspicuity, meaning the emergency vehicle has a higher ability to capture attention of motorists on or adjacent to the roadway, providing increased safety through awareness.”

Direct Control/Steady Burn
Externally Controlled lights are pre-set warning lights which completely bypass the internal timing/flash controllers, to be slaved into working through commands of another flash source with accuracy. Another flash source can be any non-proprietary controller capable of providing a 12-24 VDC signal with the support of the input current required by the selected light. These lamps allow users to take advantage of TOMAR's class-leading optics and construction, while being controlled by nearly any system.

KEY FEATURES

• High Intensity Warning and Work LED lights
• Single Color Warning LED Light

• Wide angle optical lens for maximum light output
• Each lamp can be programmed to be an intelligent lamp, or connected to an existing control system
• Surface mounted to eliminate the need to make cutouts in your vehicle
• Chrome and Black Bezels Available for a finished direct from the factory look and feel (see product options)

• SAE and EC65 Compliant Models
• Meets CA Title 13
• No Hassle 5 Year Warranty
• Utilizes TOMAR’s superior optical technology TOMAR’s optics are designed and engineered to maximize light output efficiently
• Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.

Potential Uses

• Fire Truck/Fire Engine apparatuses
• Ambulances
• Farm equipment (tractors/ work vehicles)
• Mining equipment (off-highway/haul trucks)
• Roadside towing equipment
• Snow Plows
• Work Trucks (Construction/Service Body Vehicles)

NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):
