PRODUCT OVERVIEW

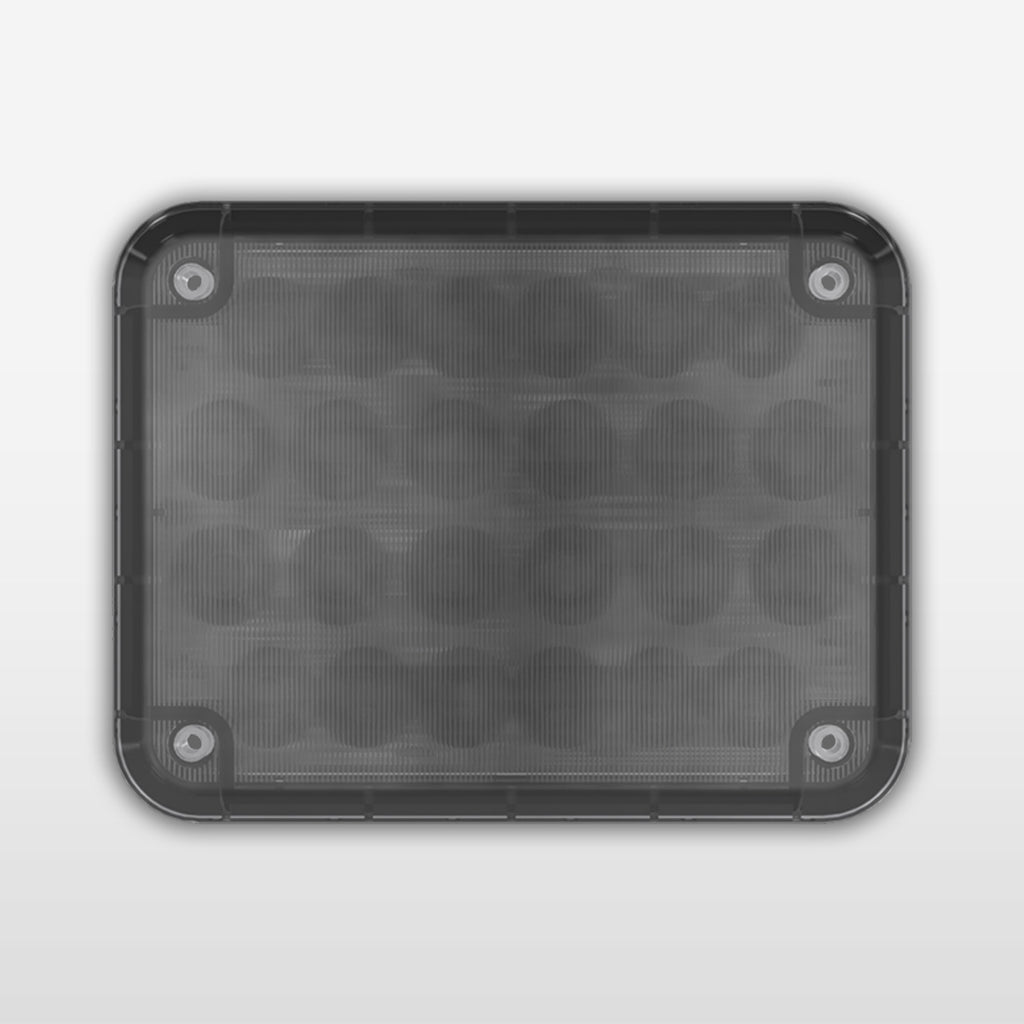

The R79 Revolution Series Single Color Warning LED Light is designed to deliver maximum emergency visibility for first responder and fleet vehicles.

By projecting lumens in a controlled horizontal plane—rather than dispersing them vertically—this light increases long-range visibility for motorists while reducing night blindness and eyestrain for first responders working close to the vehicle. This optical engineering ensures warning lights are highly visible from a distance, where they’re most effective, instead of being harsh and distracting up close.

The R79 can be configured with either SAE or European ECE65 compliant optics, making it adaptable for agencies across different regions. Built with TOMAR’s proven Revolution Series design, the R79 provides reliable, high-performance that keeps both first responders and the public safe.

KEY FEATURES

  • High Intensity Warning and Work LED lights
  • Single Color Warning LED Light
  • Wide angle optical lens for maximum light output
  • Each lamp can be programmed to be an intelligent lamp, or connected to an existing control system
  • Surface mounted to eliminate the need to make cutouts in your vehicle
  • Chrome and Black Bezels Available for a finished direct from the factory look and feel (see product options)
  • SAE and EC65 Compliant Models
  • Meets CA Title 13
  • No Hassle 5 Year Warranty
  • Utilizes TOMAR’s superior optical technology TOMAR’s Clear Vision Optics™ are designed and engineered to maximize light output efficiently
  • Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.

Potential Uses

  • Fire Truck/Fire Engine apparatuses
  • Ambulances
  • Farm equipment (tractors/ work vehicles)
  • Mining equipment (off-highway/haul trucks)
  • Roadside towing equipment
  • Snow Plows
  • Work Trucks (Construction/Service Body Vehicles)


SPECS PER LIGHT (R79)

  • Warning Lamps
    • Maximum Input Current (amp draw) R79 Warning Lights: 3.06A at 12.8VDC
    • Single Color (50% Duty Cycle): 0.79 Amps
    • Dual Color (Both Colors Flashing – 100% Duty Cycle): 1.58 Amps

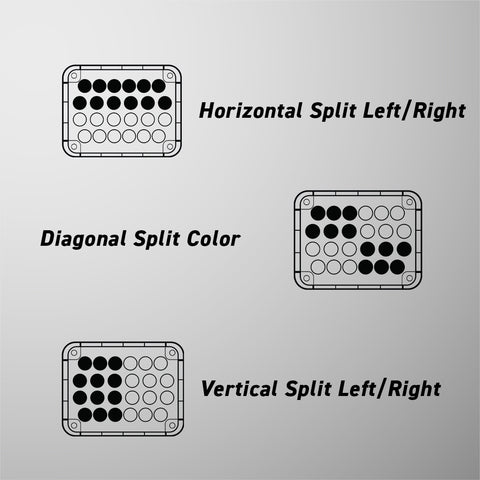

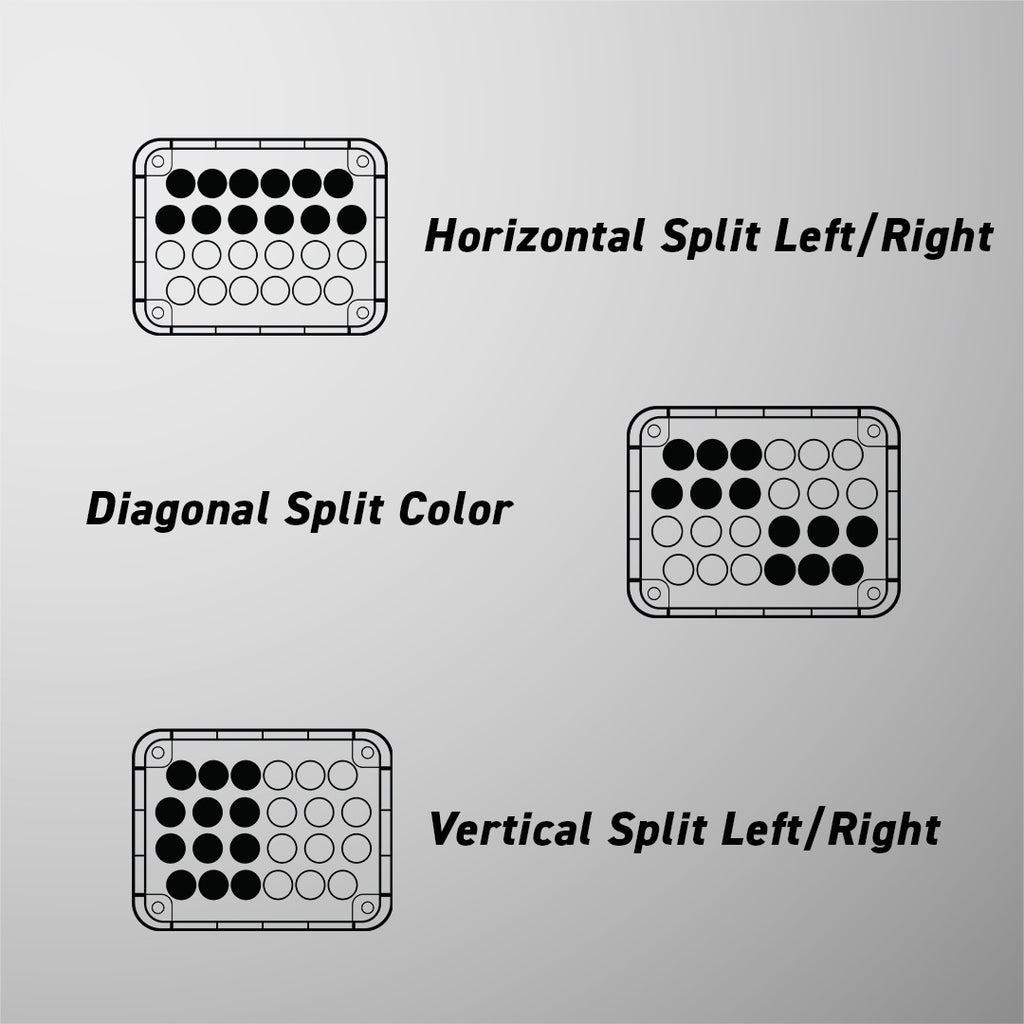

    • Split Color Lamps (50% Duty Cycle): 0.79 Amps

Wiring Details:

Internal Flasher (Smart Mode):

  • Red: Connect to Battery +12Vdc thru +24Vdc to activate
  • Black: Connect to Battery GROUND
  • Yellow: Sync Line
  • Blue: Alternate Flash Pattern

Direct Control:

  • Red: Connect to Battery +12Vdc thru +24Vdc to activate (Active Low Inputs Only)
  • Black: Connect to Battery GROUND (Active High Inputs Only)
  • Yellow: Side A or Color 1
  • Blue: Side B or Color 2

NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):

Model Single Double Neobe

R79L-W-A

 1,287,525 643,763 901,268

R79L-W-B

 835,725 417,863 585,008

R79L-W-R

 1,240,875 620,438 868,613

R79L-W-W

 2,604,075 1,302,038 1,822,853

R79LD-W-A

 986,325 493,163 690,428

R79LD-W-B

 590,175 295,088 413,123

R79LD-W-R

 846,825 423,413 592,778

R79LD-W-W

 2,018,850 1,009,425 1,413,195

NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):

Model Single Double Neobe

R79L-W-A

 965,475 482,738 675,833

R79L-W-B

 628,845 314,423 440,192

R79L-W-R

 1,504,597 752,299 1,053,218

R79L-W-W

 2,069,700 1,034,850 1,448,790

R79LD-W-A

 882,525 441,263 617,768

R79LD-W-B

 596,602 298,301 417,621

R79LD-W-R

 742,650 371,325 519,855

R79LD-W-W

 1,766,100 883,050 1,236,270
