PRODUCT OVERVIEW

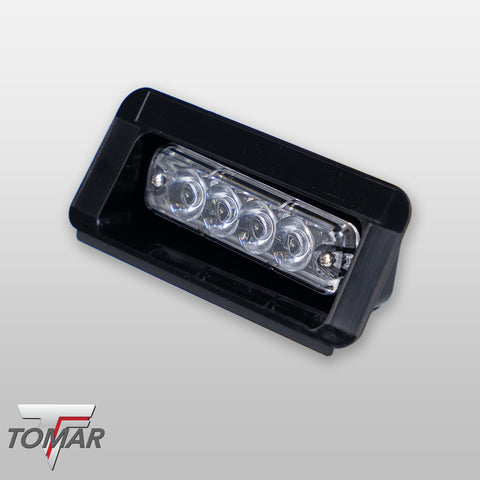

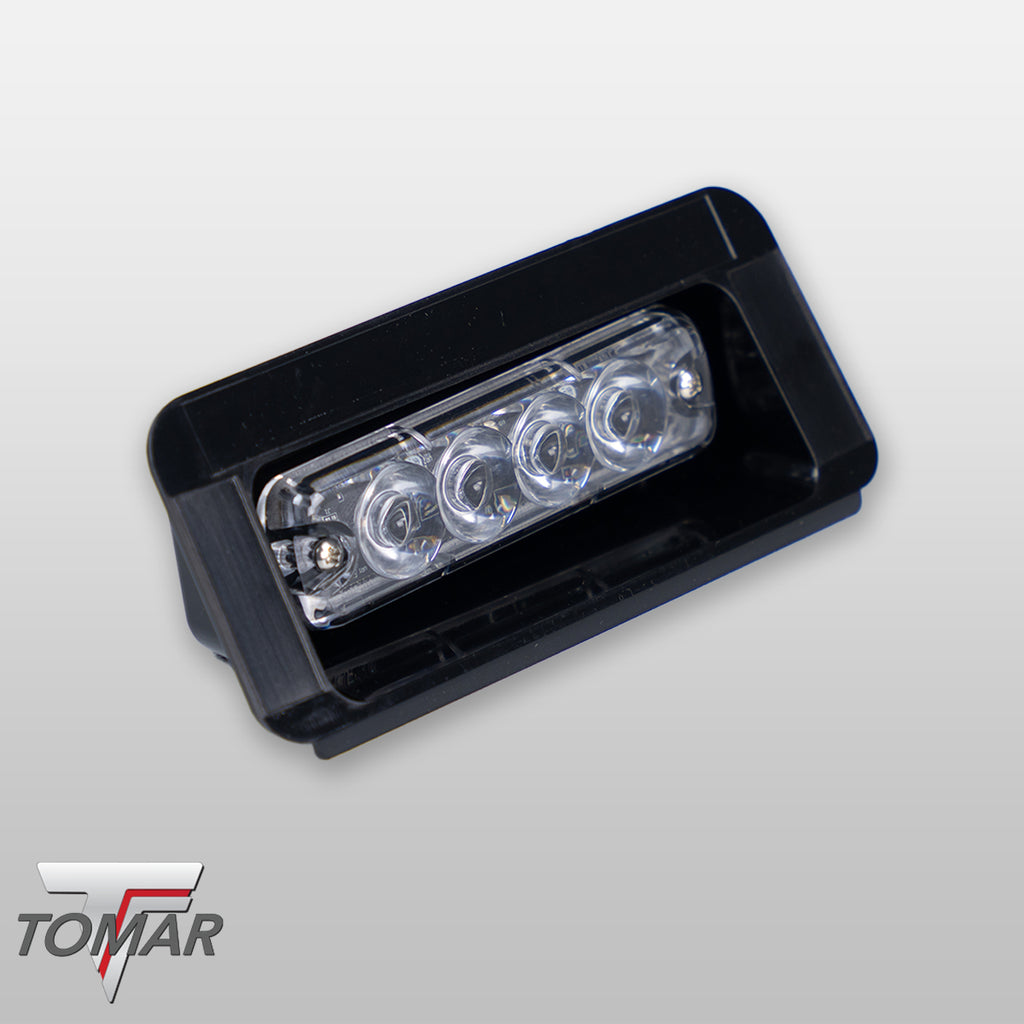

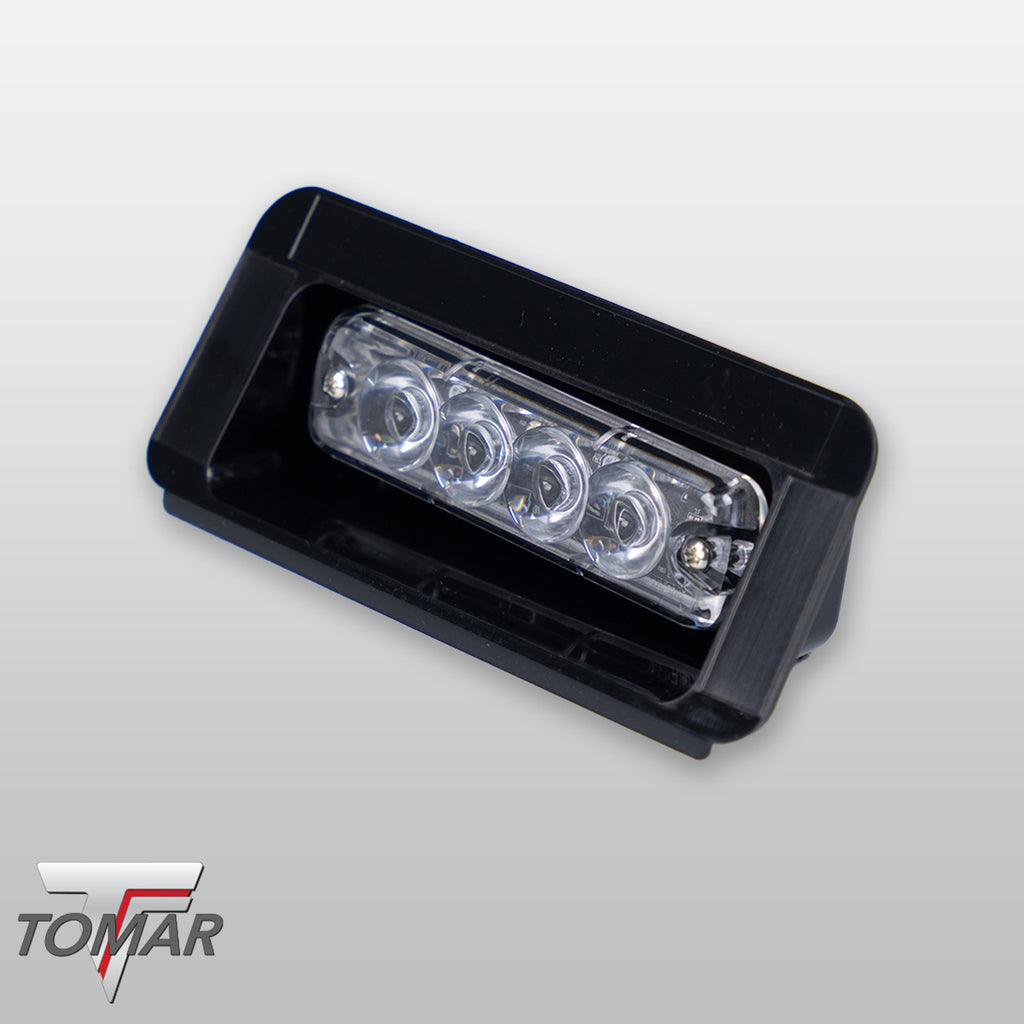

The Self-contained windshield units are available with your choice of LED color and windshield scoop or the windshield scoop with a cigar plug. TOMAR’s RECT-14LS dual channel, ultra high intensity, LED warning light delivers a huge impact in a small footprint. Dual channels offer independent function of up to two lamp colors with dozens of user-selectable modes.
Made of optical Lexan and hermetically sealed, this one piece, fit anywhere design makes installation a breeze. At only 4.5 ” x 1.25″ x .75″ the RECT-14LS is one of the smallest warning lights on the market to meet SAE J845, SAE J595.
The RECT-14LS’s compact size makes it the perfect auxiliary light for all the hard to fit locations. Mount directly to the body, the rearview mirror, grille or the license plate. A complete line of brackets means you can mount this light practically anywhere.
KEY FEATURES:
- 4 ultra-high intensity LEDs
- Trusted by first responders the RECT series lights were originally developed for firefighters, police, and EMS vehicles.
- TOMAR-Patented Linear-Vibration Weld Seal rated IP69+ waterproof and dust-proof.
- Two independent trigger wires for two programmable modes (e.g. steady-on and flashing).
- Includes a sync wire for a clean, synchronized look.
- Each light is available in a single color (amber, blue, red, green, white/clear) or a split color mode where two LEDs are one color and the other two LEDs are another color.
NOTE: The light color that is selected is the light color for that specific LED light - SAE J845 and SAE J595 compliant
- Full array of mounting bracket options
- Five Year warranty
SINGLE COLOR OR SPLIT COLOR?
-
Split color on the RECT 14 is the option to have two colors per LED light. This function is defined as split color. This allows you to have your RECT 14 light wig-wag between the two colors (different flash patterns available) or steady burn with both colors on simultaneously. -
Single color on the RECT 14 is where all four LEDs on the RECT 14 are one single color ( amber, white/clear, blue, green, red). With single color, you can still utilize the wig-wag functions that the RECT 14 offers and the steady-burn function; however, it will be one color.
RECT 14 SPECS
- 4.5″ Wide x 1.25″ High x .75″ Deep
- Amber, Blue, Green, Red, White
- .40 Amp avg.
- 12/24 VDC.
- -55°C to +65°C
RECT Series beam-angles for meeting SAE J595/J845 Standards:
- Class 1: +/- 40 degrees
- Class 2: +/- 60 degrees
- Class 3: +/- 75 degrees
Wiring Details
- Red: Connect to Battery +12Vdc thru +24Vdc to activate
- Black: Connect to Battery GROUND
- Yellow: Sync Line
- Blue: Alternate Flash Pattern
NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute
| Model | Single | Double | Neobe |
|---|---|---|---|
| RECT-14LS-AA | 69,306 | 34,653 | 48,514 |
| RECT-14LS-BB | 74,778 | 37,389 | 52,344 |
| RECT-14LS-RR | 101,168 | 50,584 | 70,817 |
| RECT-14LS-WW | 265,146 | 132,573 | 185,602 |
