  • An Envelope of Safety® product
  • When rearward real-estate is at a premium the RECT 14 LStick series Traffic Director LED Light Bar exceed your expectations.
  • SKU:
  • YOUR PRICE:

PRODUCT OVERVIEW

TOMAR’s RECT 14 LStick series Traffic Director does more than just direct traffic! With a built-in controller, these self-contained, fully waterproof slim-line modular light-sticks provide powerful traffic directional and warning patterns.

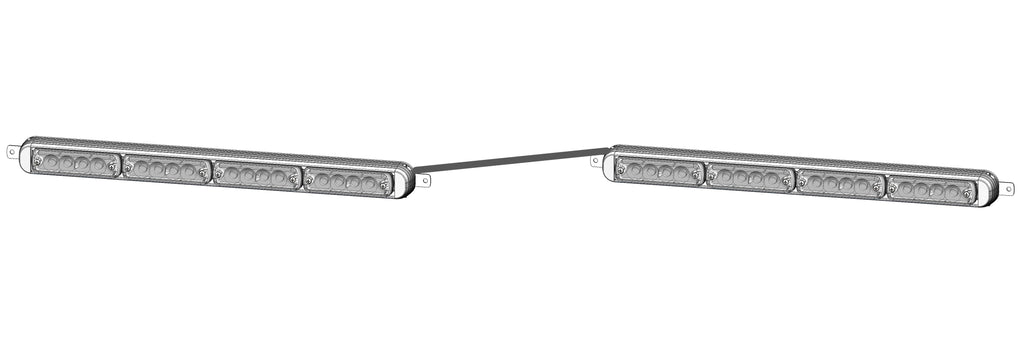

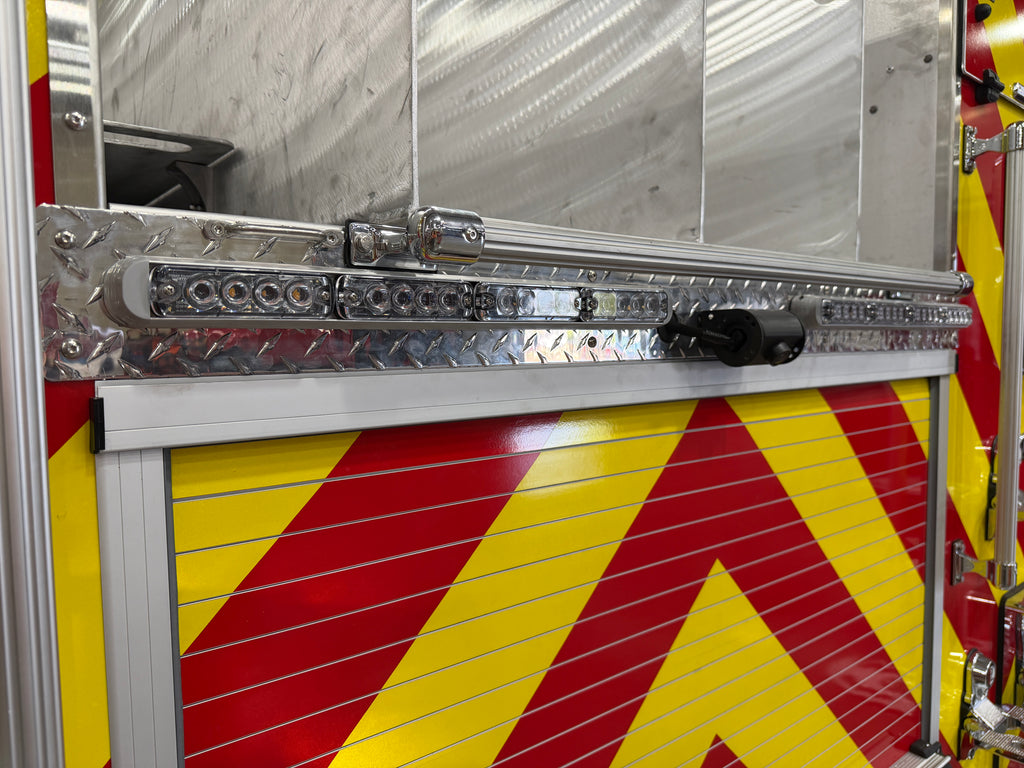

Designed for apparatus with a hose bed, reverse camera, or other center-mounted equipment preventing a contiguous light bar, this split design with connecting jumper cable allows control over a full 8-element traffic director and warning bar from one control harness.

KEY FEATURES

  • Two separate 20" LSTICK light bars, connected through jumper harness
  • One control harness
  • Internal controller - only mode switches needed (constant 12VDC)
  • Easy, two screw lamp replacement
  • Built in flasher with multiple flash patterns
  • Internal/external mounting
  • Available in aluminum or black housing




R14 L-Stick lengths

1.75″ high x 1.75″ deep, ~20″ long each section

SPECS

  • Operating Temperature Range: -55°C to +65°C
  • Current Draw: 265 mA average per R14 module in Neobe flash pattern
  • Input Voltage: 12 VDC

AMP DRAW at 12.8VDC

  • LSTICK-14TD4 4.40 Amps Max

Wiring Details

  • Red: +12Vdc
  • Black: Ground
  • Orange: Warning Mode 1
  • Blue: Warning Mode 2
  • Orange & Blue: Warning Mode 3
  • Red/White: Left Arrow
  • Brown/White: Right Arrow
  • Red/Wht & Brn/Wht: Center Out
  • Green: Intensity Control
  • Brown: Steady Burn


Flash Patterns

Traffic Direction Flash Patterns

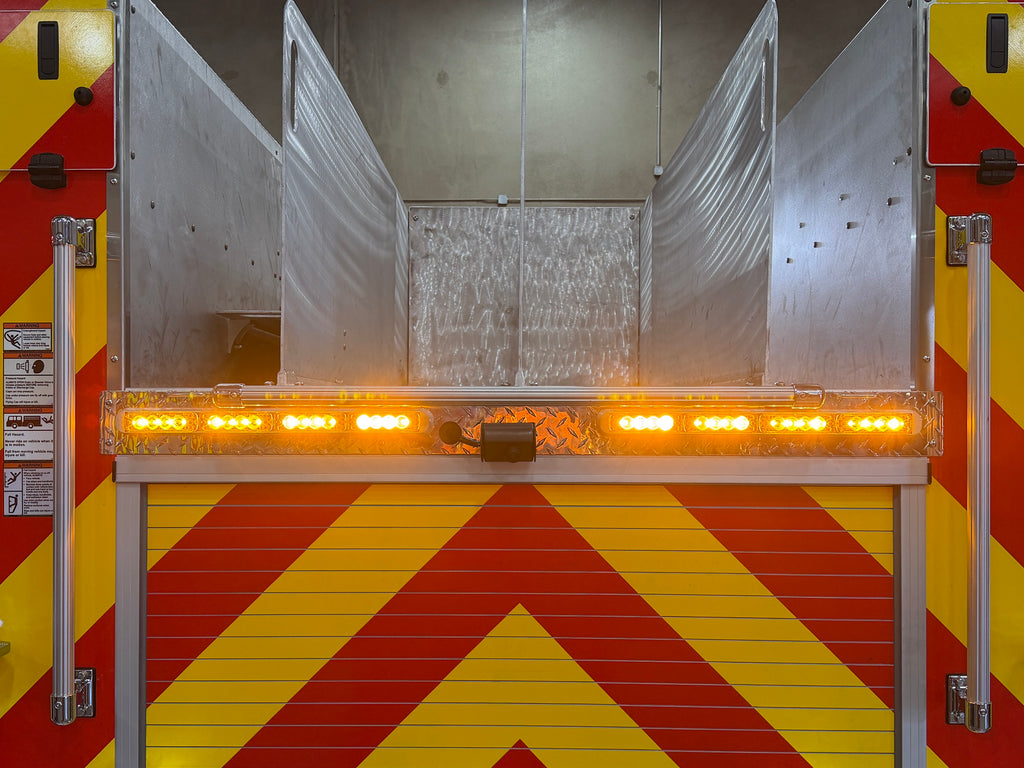

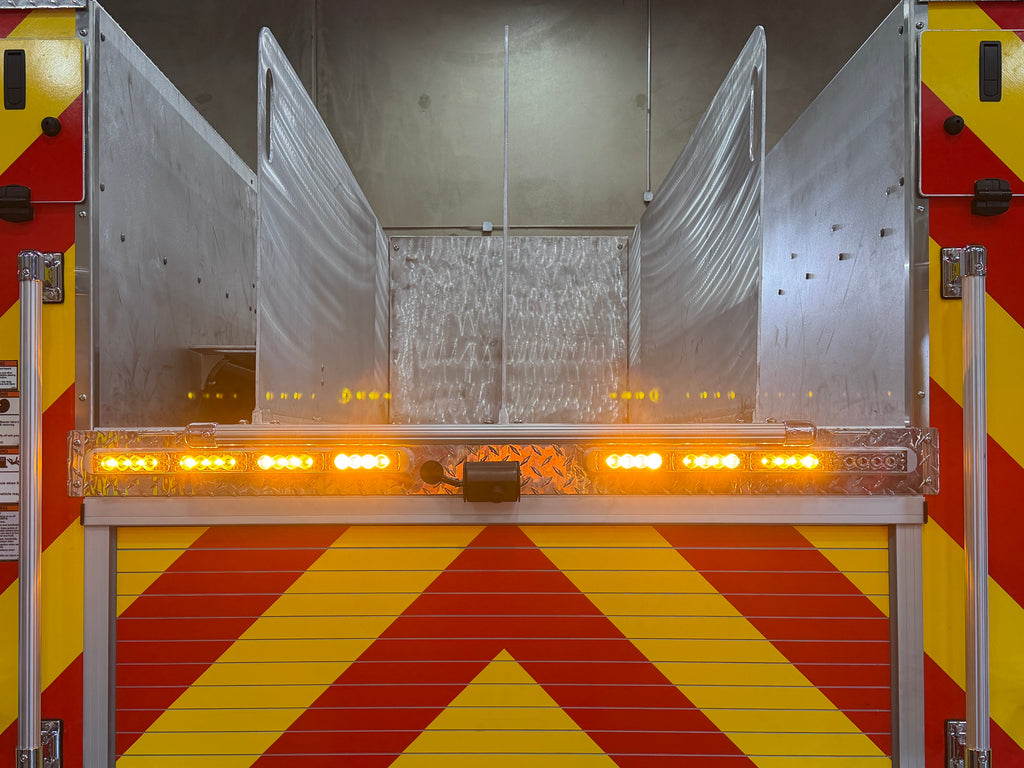

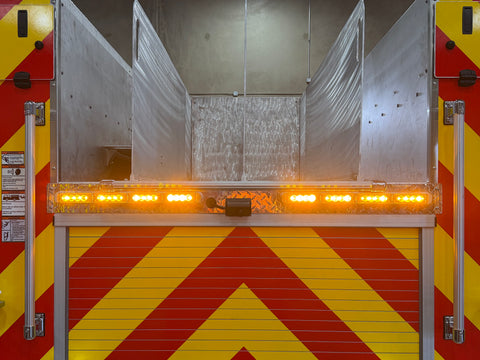

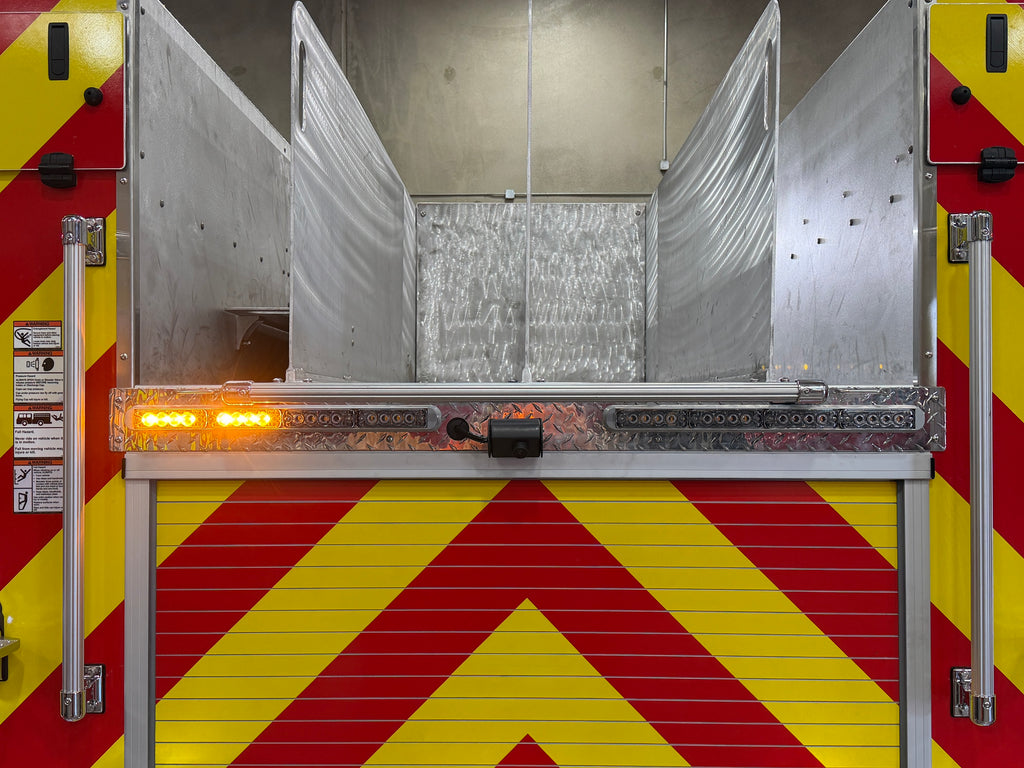

  • 8 ELEMENT ARROW FILL, WARNING LAMPS OFF
  • 8 ELEMENT ARROW TRAIL, WARNING LAMPS OFF
  • 8 ELEMENT ARROW FILL with 2 Warning (SINGLE OUTBOARD) ALTERNATING
  • 8 ELEMENT ARROW TRIAL with 2 Warning (SINGLE OUTBOARD) ALTERNATING
  • 8 ELEMENT ARROW FILL with 2 Warning (SINGLE OUTBOARD) SIMULTANEOUS
  • 8 ELEMENT ARROW TRAIL with 2 Warning (SINGLE OUTBOARD) SIMULTANEOUS

Flash Patterns, Warning Modes (All Versions)

  • OFF
  • COMBINATION ** DEFAULT SCROLL FLASH
  • INBOARD OUTBOARD
  • LEFT RIGHT
  • ALTERNATE
  • RANDOM
  • SINGLE OUTBOARD
  • DOUBLE OUTBOARD
  • SINGLE INBOARD
  • DOUBLE INBOARD
  • TRIPLE INBOARD (not available on 6 lamp versions)
  • SWEEP

Flash Rates

  • SINGLE FLASH
  • DOUBLE FLASH
  • NEOBE FLASH
  • SCROLL FLASH WARNING PATTERNS
