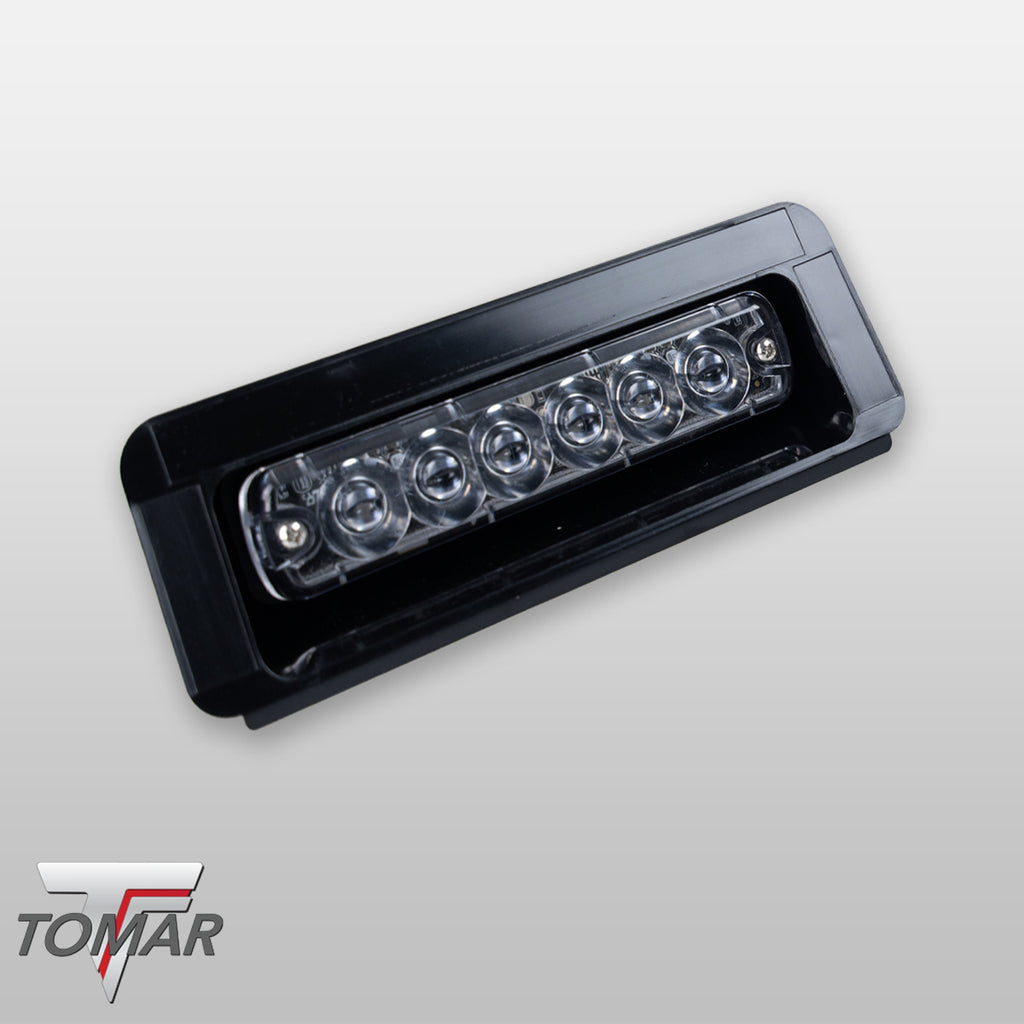

RECT 16 Series Self-Contained Unit



PRODUCT OVERVIEW

The RECT 16 Series Self-Contained windshield units are available with your choice of LED color and windshield scoop or the windshield scoop with a cigar plug.
TOMAR’s RECT-16 dual channel, ultra high intensity, LED warning light delivers a huge impact in a small footprint. Dual channels offer independent function of up to two lamp colors with dozens of user-selectable modes.

The RECT-16 is made with optical Lexan and hermetically sealed into a one piece design for easy installation. The RECT-16 has optics that are designed to optimize the light spread for either horizontal mounting (RECT-16LS version) or vertical mounting (RECT-16LSV version). The RECT-16 also meets SAE J845, SAE J595 and CAL Title 13 specifications. The RECT-16’s compact size makes it the perfect auxiliary light for all the hard to fit locations. Mount directly to the body, the rearview mirror, grille or the license plate. A complete line of brackets means you can mount this light practically anywhere.

POTENTIAL USES

  • Work Vehicles (mining/construction vehicles)
  • Emergency response vehicles


RECT 16 KEY FEATURES

  • 6 ultra-high intensity LEDs
  • Trusted by first responders the RECT series lights were originally developed for firefighters, police, and EMS vehicles.
  • TOMAR-Patented Linear-Vibration Weld Seal rated IP69+ waterproof and dust-proof.
  • Two independent trigger wires for two programmable modes (e.g. steady-on and flashing).
  • Includes a sync wire for a clean, synchronized look.
  • Each light is available in a single color (amber, blue, red, green, white/clear) or a split color mode where two LEDs are one color and the other two LEDs are another color.
    NOTE: The light color that is selected is the light color for that specific LED light
  • SAE J845 and SAE J595 compliant
  • Full array of mounting bracket options
  • Five Year warranty

SINGLE COLOR OR SPLIT COLOR?

  • SPLIT COLOR
    Split color on the RECT 16 is the option to have two colors per LED light. This function is defined as split color. This allows you to have your RECT 16 light wig-wag between the two colors (different flash patterns available) or steady burn with both colors on simultaneously.
  • SINGLE COLOR
    Single color on the RECT 14 is where all four LEDs on the RECT 16 are one single color ( amber, white/clear, blue, green, red). With single color, you can still utilize the wig-wag functions that the RECT 16 offers and the steady-burn function; however, it will be one color.

RECT 16 SPECS

  • Size: 4.5″ Wide x 1.25″ High x .75″ Deep
  • LED Color Choices: Amber, Blue, Green, Red, White
  • Current Draw: .40 Amp avg.
  • Input Voltage: 12/24 VDC.
  • Operating Temperature Range: -55°C to +65°C

RECT Series beam-angles for meeting SAE J595/J845 Standards:

  • Class 1: +/- 40 degrees
  • Class 2: +/- 60 degrees
  • Class 3: +/- 75 degrees

Wiring Details

  • Red: Connect to Battery +12Vdc thru +24Vdc to activate
  • Black: Connect to Battery GROUND
  • Yellow: Sync Line
  • Blue: Alternate Flash Pattern

NFPA 1901 Cumulative Lamp Totals Candela Seconds per Minute

Model Single Double Neobe
RECT-16LS-AA 69,306 34,653 48,514
RECT-16LS-BB 74,778 37,389 52,344
RECT-16LS-RR 101,168 50,584 70,817
RECT-16LS-WW 265,146 132,573 185,602
