UCD 6-LED Undercover/Hide-Away LED Light

PRODUCT OVERVIEW

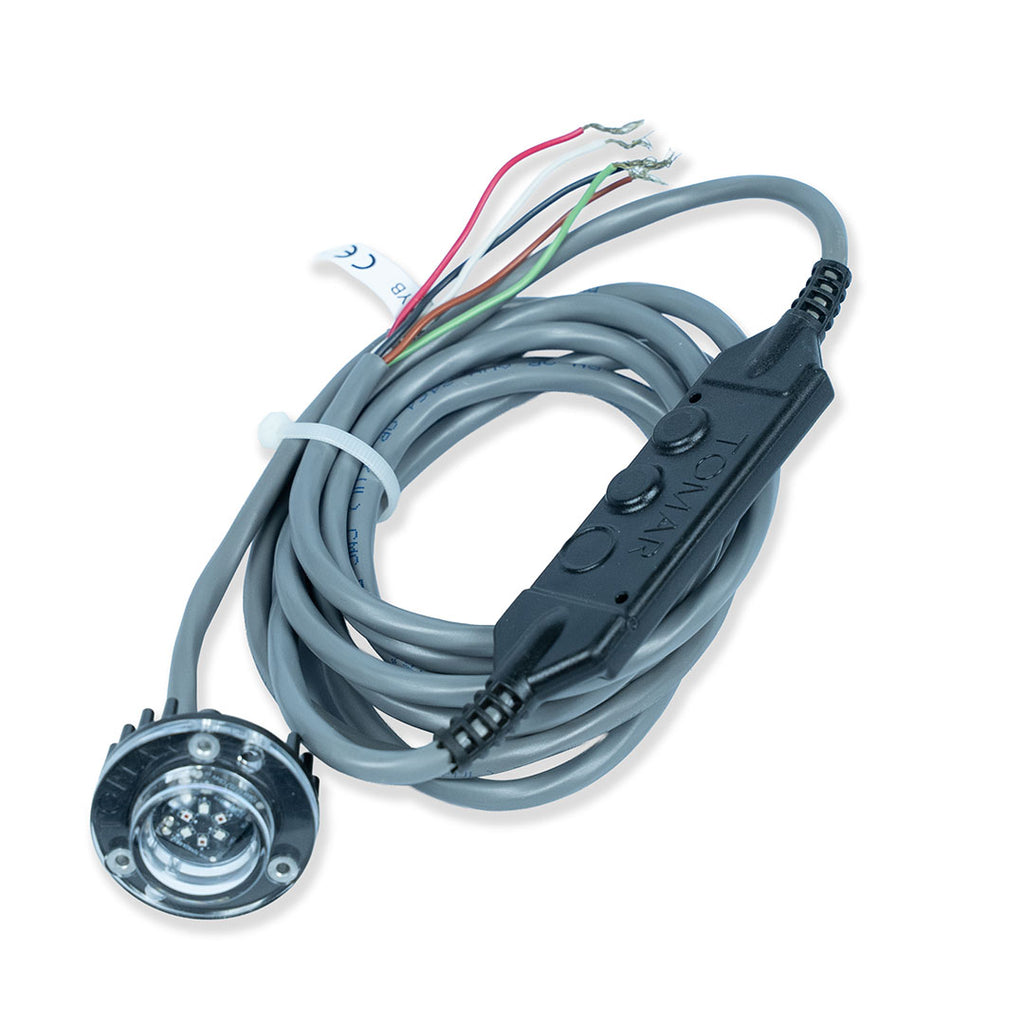

Hide-away LED Warning OR Illumination – TOMAR’s Concealable LED’s provide warning light or illumination for various applications from unmarked vehicles to off-road "rock" lights, to maritime craft marker lights. The low-profile system features 6 high-intensity LEDs with a waterproof in-line control module.

The UCD - TOMAR's Undercover LED Lamp with Dual-Color Capabilities

Each UCD is independently controllable, features multiple flash patterns with user selectable colors, 4 modes of operation, a dimming feature, and will synchronize with other light modules set to the same flash rate.  Get BIG performance from a SMALL package with UCD!

KEY FEATURES

• Ultra-high intensity LEDs
• Multiple user selectable flash patterns
• 6 Single Color for high-intensity,
• Optional Alternating or Split 3/3 Dual-Color LEDs
• Available in red, blue, amber, green and white combinations
• Three optical choices for ideal light disbursement depending on application
• Rated IP67
• 5 year warranty

SPECS

• UCD-LED20 dimensions - 1.5” Dia x .5” flange - .50” optic (1” hole)
• UCD-LED80 dimensions - 1.5” Dia x .5” flange - .45” optic (1” hole)
• UCD-LED360 dimensions - 1.5” Dia x .5” flange - .7” optic (1” hole)
• Input Current at 12Vdc - .5 a / 12Vdc
• Input Current at 24Vdc - .3 a / 24Vdc
• Input Voltage Range - 12/24Vdc
• Operating Temperature - -40°C to +70°C

HELPFUL LINKS

• UCD-LED 2-Color Hide Away LED Lamp Programming instructions
• UCD-LED Series Product Brochure
• UCD-LED Custom Default Configurations

3D STEP FILES

• UCD-LED20 3D STEP FILE
• UCD-LED80 3D STEP FILE
• UCD-LED360 3D STEP FILE
